Remove/install lamp for vanity mirror - AR82.20-P-5582TX

MODEL 219.3

Shown on left front vanity mirror illumination

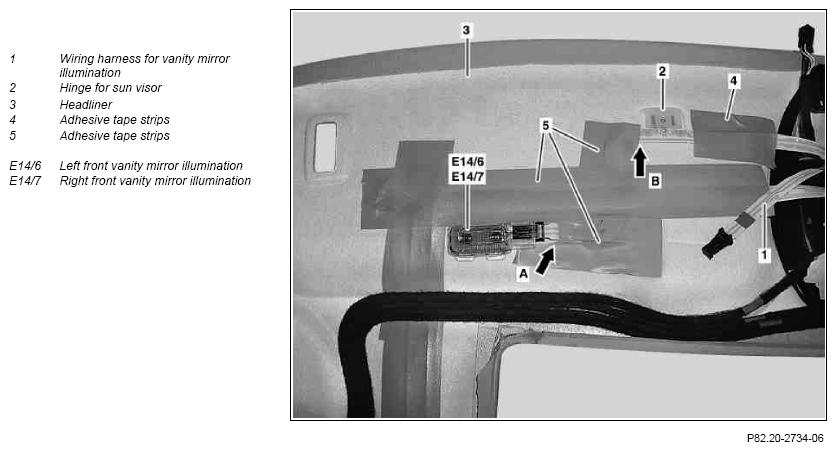

Fig 1: Identifying Vanity Mirror Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Removing
	The left front vanity mirror illumination (E14/6), right front vanity mirror illumination (E14/7) and the vanity mirror illumination wiring harness (1) are designed as one piece along with the left and right sun visor hinge (2) and cannot be removed separately. The left front vanity mirror illumination (E14/6) and right front vanity mirror illumination (E14/7) must always be replaced after removal.
1	Remove headliner (3) and place on vehicle's head restraints	Do not remove the windshield. Remove headliner (3) only far enough to enable access from above to the left front vanity mirror illumination (E14/6) and right front vanity mirror illumination (E14/7) and the vanity mirror illumination wiring harness (1).	AR68.30-P-4300TY
2	Cut through old vanity mirror illumination wiring harness (1) upstream of the left front vanity mirror illumination (E14/6) and the right front vanity mirror illumination (E14/7) (arrow A)
3	Cut through old vanity mirror illumination wiring harness (1) upstream of the left and right sun visor hinge (2) (arrow B)
4	Unclip and remove left front vanity mirror illumination (E14/6) and the right front vanity mirror illumination (E14/7) from headliner (3)
5	Detach adhesive strips (4) and remove the loose remains of the old vanity mirror illumination wiring harness (1) from the headliner (3)	Do not remove any existing adhesive strips (5).
6	Unclip and remove left and right sun visor hinges (2) from the headliner (3)
	Install
7	Install new vanity mirror illumination wiring harness (1) into the headliner (3)		AR68.30-P-4305-05TX
		Adhesive tape	*BR00.45-Z-1071-02A
8	Install headliner (3)		AR68.30-P-4300TY
