Remove/install contact plate for cell phone holder (UPCI [UHI]) in the armrest - AR82.70-P-8919TX

MODEL 219 with CODE (386) Preinstallation for telephone "Cell phone" UPCI [UHI] system with CODE (388) Telephone "Cell phone" UPCI [UHI] system with CODE (389) Mobile phone preinstallation with universal interface, USA/Canada

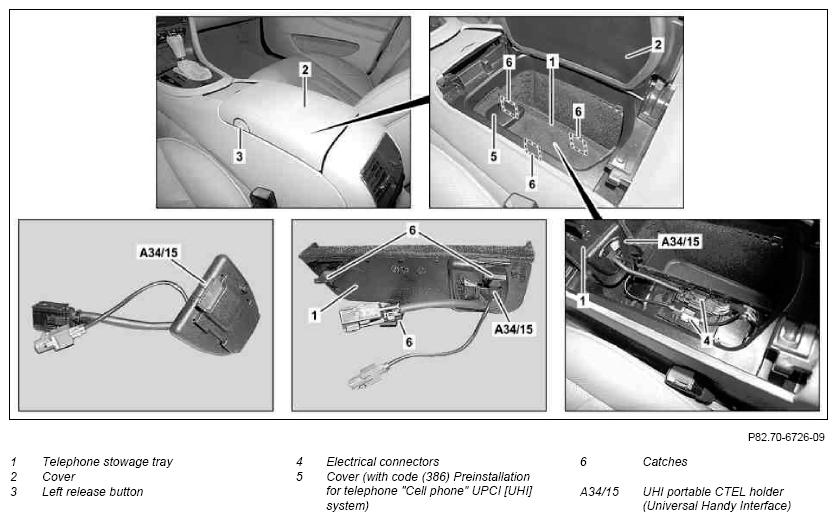

Fig 1: Identifying Cell Phone Holder Contact Plate Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Actuate left release button (3) and open cover (2) of stowage compartment in center console at front
2	Remove telephone mount from telephone stowage tray (1)	For vehicles with installed telephone mount.
3	Remove cover (5) from Universal Portable Cell Phone Interface (UPCI [UHI]) cell phone holder (A34/15)	With code (386) Preinstallation for telephone "Handy", UPCI system
4	Release catches (6) at telephone stowage tray (1)	Make sure that the catches (6) for the telephone stowage tray (1) engage.
5	Pull telephone stowage tray (1) upwards and out and place to one side
6	Remove electrical connectors (4) from corresponding brackets and disconnect	Ensure that electrical connectors (4) are correctly seated in the corresponding brackets.
7	Remove telephone stowage tray (1)
8.1	Unclip Universal Portable Cell Phone Interface (UPCI [UHI]) cell phone holder (A34/15) from telephone stowage tray (1) and remove	When replacing telephone stowage tray (1) or the Universal Portable Cell Phone Interface (UPCI [UHI]) cell phone holder (A34/15) up to 2.3.08.
8.2	Remove bolts from Universal Portable Cell Phone Interface (UPCI [UHI]) cell phone holder (A34/15) and remove from the telephone stowage tray (1)	When replacing telephone stowage tray (1) or the Universal Portable Cell Phone Interface (UPCI [UHI]) cell phone holder (A34/15) as of 3.3.08. The Universal Portable Cell Phone Interface (UPCI [UHI]) cell phone holder (A34/15) is fastened in place using three bolts.
9	Install in the reverse order
