Remove/install compensator control unit - AR82.70-P-0030TX
MODEL 219.3 up to 2.3.08 except CODE (809) Model year 2009 with CODE (386) Preinstallation for telephone "Cell phone" UPCI [UHI] system with CODE (388) Telephone "Cell phone" UPCI [UHI] system
MODIFICATION NOTES
| 5.7.06 | "Disconnect/connect battery ground line" removed |
| Remove/Install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

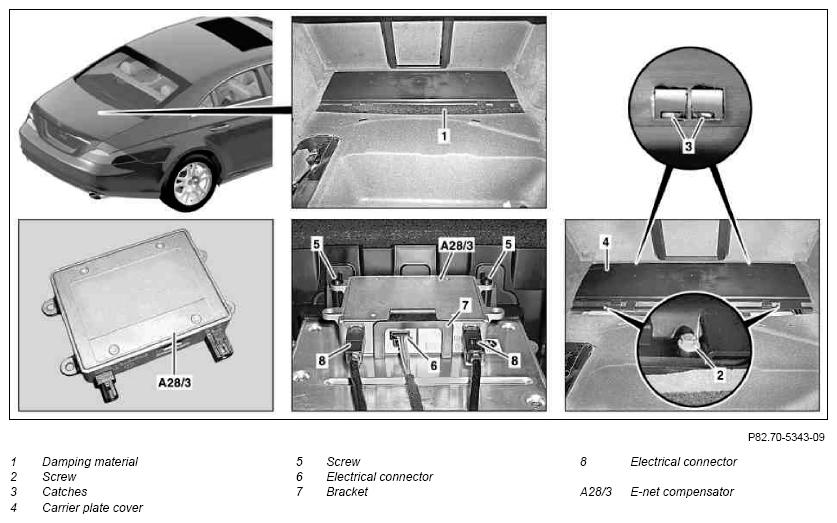

| 1 | Remove soundproofing (1) | ||
| 2 | Remove bolts (2) | ||
| 3 | Release catches (3) using a suitable screwdriver and remove carrier plate cover (4) | ||
| 4 | Remove bolts (5) | ||
| 5 | Disconnect electrical connector (6) | ||
| 6 | Separate electrical connectors (8) | ||
| 7 | Unclip E-net compensator (A28/3) from bracket (7) and remove | ||
| 8 | Install in the reverse order |
