Remove/install Bluetooth antenna - AR82.62-P-8980TY

MODEL 211.0/2/6 as of 2.6.08

MODEL 211.0/2/6 with CODE (809) Model year 2009

MODEL 219.3 as of 3.3.08

MODEL 219.3 with CODE (809) Model year 2009

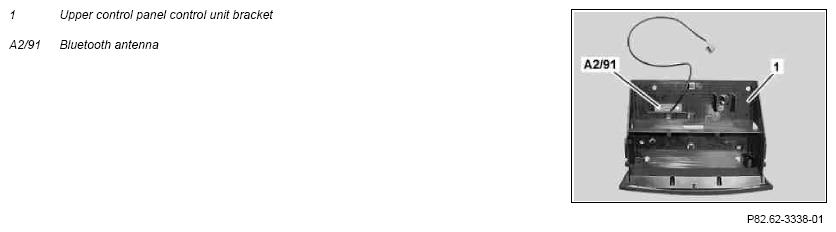

Fig 1: Identifying Bluetooth Antenna Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove upper control panel control unit carrier (1)		AR54.21-P-1262TY
2	Remove Bluetooth antenna (A2/91) from upper control panel control unit holder (1)
3	Remove adhesive residues from upper control panel control unit carrier (1) and clean bonding surface using suitable cleaner	Do not touch bonding surface with bare fingers. The bonding surface should be free of dust, oil, grease, wax and other adhesive components or dirt residues. Otherwise the strength of the glued connections is impaired.
	Install
4	Remove protective foil from new Bluetooth antenna (A2/91) and glue Bluetooth antenna (A2/91) onto upper control panel control unit carrier (1)	Do not touch bonding surface with bare fingers. The bonding surface should be free of dust, oil, grease, wax and other adhesive components or dirt residues. Otherwise the strength of the glued connections is impaired. Note installation position of Bluetooth antenna (A2/91) at upper control panel control unit carrier (1).
5	Install upper control panel control unit holder (1)		AR54.21-P-1262TY
