Check wiper arms and adjust - AR82.30-P-6000TX
MODEL 219.3
| Checking | |||
| Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities. | Always remove ignition key when working on windshield wiper mechanism. | AS82.30-Z-0001-01A | |
| When working on the raised driver-side wiper arm (1) or passenger-side wiper arm (2), make sure that these do not fall onto the windshield, otherwise the windshield may be damaged. | |||
| 1 | Move wiper system from park position | ||

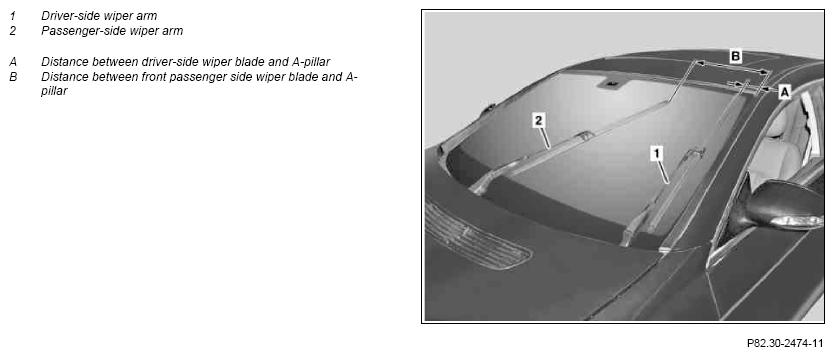

| 2 | Position the driver-side wiper arm (1) and passenger-side wiper arm (2) by hand in the reversing position | The reversing position of the passenger-side wiper arm (2) corresponds to the distance from the passenger-side wiper blade to the A-pillar (B) of approx. 390 mm. For left-hand drive vehicles, measured from the upper wiper blade end of the driver-side wiper blade (1) and the front passenger side wiper blade (2) to the inside of the left A-pillar. For right-hand drive vehicles, measured from the upper wiper blade end of the driver-side wiper blade (1) and the front passenger side wiper blade (2) to the inside of the right A-pillar. |
|
| 3 | Remove wiper blades | ||
| 4 | Measure the angle of incidence from the driver- side wiper arm (1) and from the passenger-side wiper arm (2) to the windshield, note it down and then compare the check values with the adjustment values | AR82.30-P-6000-01TX | |
| Angle of incidence of wiper arm on driver-side (1) in reversing position | *BE82.30-P-1001-01I | ||
| Angle of incidence of wiper arm on passenger- side (2) in reversing position | *BE82.30-P-1002-01I | ||
| Angle of incidence of wiper arm on driver-side (1) in park position | *BE82.30-P-1003-01I | ||
| Angle of incidence of wiper arm on front- passenger side (2) in park position | *BE82.30-P-1004-01I | ||
| Fig 3 | |||
| 5.1 | Adjust angle of incidence of driver-side wiper arm (1) or front passenger side wiper arm (2) in park position | In the event that the test values deviate from the tolerance range in reversing position or in park position and reversing position: | AR82.30-P-6100-01TX |
| Angle of incidence of wiper arm on driver-side (1) in park position | *BE82.30-P-1003-01I | ||
| Angle of incidence of wiper arm on front- passenger side (2) in park position | *BE82.30-P-1004-01I | ||
| Fig 3 | |||
| Notes on wiper arm adjustment | AH82.30-P-0001-01TX | ||
| 5.2 | Adjusting wiper system | In the event that the test values of the driver- side wiper arm (1) and front passenger side wiper arm (2) deviate from the tolerance range in park position. | AR82.30-P-6400-01TX |
| Angle of incidence of wiper arm on driver-side (1) in park position | *BE82.30-P-1003-01I | ||
| *BA82.30-P-1004-01I | |||
| Fig 2 | |||
| Fig 3 | |||
| Notes on wiper arm adjustment | AH82.30-P-0001-01TX | ||
| 6 | Lift driver-side wiper arm (1) and passenger- side wiper arm (2) and move out of park position into reversing position | ||
| 7 | Install wiper blades | ||
| 8 | Perform wiper system function check |
WIPER ARM TEST AND ADJUSTMENT VALUES
| Number | Designation | Model 219 | ||
|---|---|---|---|---|
| BE82.30-P-1001-01I | Angle of incidence of wiper arm on driver-side in reversing position | Left-hand drive vehicle | ∠° | -0.5 to -3.5 |
| Right-hand drive vehicle | ∠° | +0.5 to +3.5 | ||
| BE82.30-P-1002-01I | Angle of incidence of wiper arm on front passenger side in reversing position | Left-hand drive vehicle | ∠° | -0.5 to -3.5 |
| Right-hand drive vehicle | ∠° | +0.5 to +3.5 | ||
| BE82.30-P-1003-01I | Angle of incidence of wiper arm on driver-side in park position | Left-hand drive vehicle | ∠° | +2.5 to +6.5 |
| Right-hand drive vehicle | ∠° | -2.5 to -6.5 | ||
| BE82.30-P-1004-01I | Angle of incidence of wiper arm on front passenger side in park position | Left-hand drive vehicle | ∠° | +2.5 to +6.5 |
| Right-hand drive vehicle | ∠° | -2.5 to -6.5 | ||
WINDSHIELD WIPER
| Number | Designation | Model 219.3 | ||
|---|---|---|---|---|
| BA82.30-P-1004-01I | Screw/bolt, wiper system to partition wall | M8 | Nm | 11 |
