Remove/install yaw rate and lateral acceleration sensor - AR42.45-P-0841P
MODELS 209.3
Shown on model 203

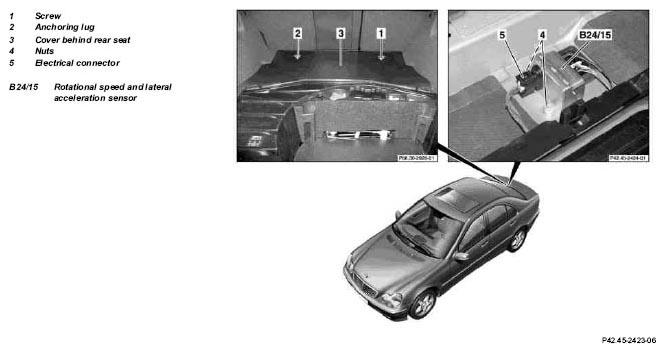

Fig 1: Identifying Yaw Rate And Lateral Acceleration Sensor Remove/Install Components (Shown On Model 203)
| Remove/install | |||
| 1 | Remove trunk floor trim panel | ||
| 2 | Unscrew screws (1) | ||
| *BA68.50-P-1002-03A | |||
| 3 | Remove lashing eye (2) | ||
| 4 | Remove cover behind rear seat (3) | ||
| 5 | Unscrew nuts (4) | ||
| 6 | Remove yaw rate and lateral acceleration sensor (B24/15) | The sensor (B24/15) is sensitive to shock. |
|
| 7 | Disconnect electrical connector (5) | ||
| 8 | Install in the reverse order | ||
| 9 | Carry out road test as per STAR DIAGNOSIS | After replacing the sensor (B24/15) | |
| 10 | Perform initialization of DTR control unit with STAR DIAGNOSIS | After replacing the sensor (B24/15) on vehicles with code (219) Distronic (DTR) |
LOAD RETAINER
| Number | Designation | Model 209 | |
|---|---|---|---|
| BA68.50-P-1002-03A | Screw for anchoring lug at front in trunk. | Nm | 20 |
