Remove/install left or right rear axle speed sensor - AR42.40-P-0820QBS (Black Series)
MODEL 209 with CODE P98 Black Series
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Raise vehicle | AR00.60-P-1000P | |

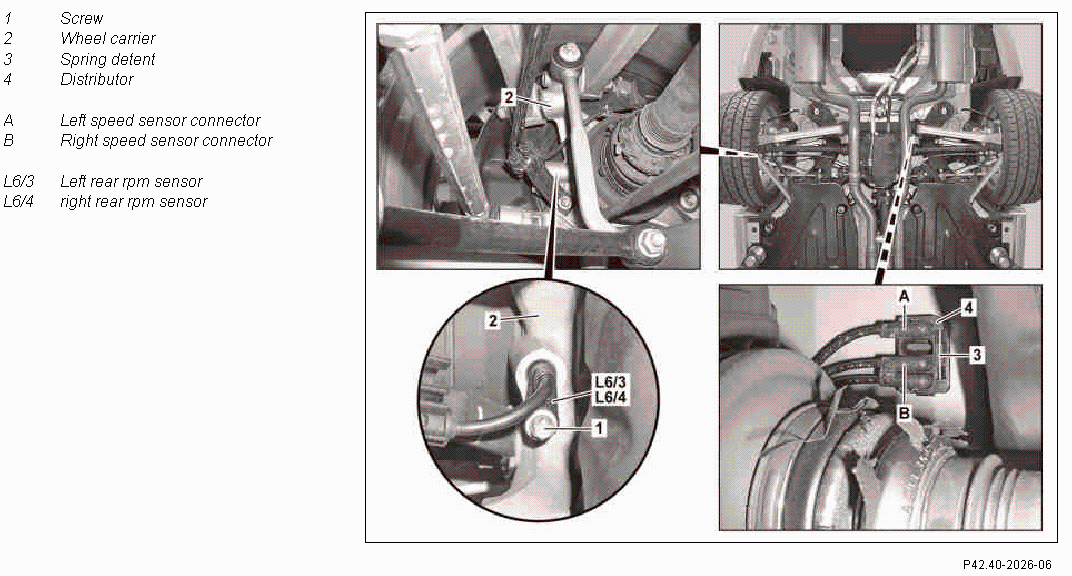

| 2 | Remove bolt (1) from wheel carrier (2) | *BA42.30-P-1001-02A | |
| 3 | Unclip electrical feed line of RPM sensor (L6/3 and L6/4) from brackets | ||
| 4 | Press spring detent (3) and pull connector (A and B) of RPM sensor (L6/3 and L6/4) out of distributor (4) | ||
| 5 | Pull RPM sensor (L6/3 and L6/4) out of wheel carrier (2) | ||
| Clean | |||
| 6 | Clean contact surface of RPM sensor (L6/3 and L6/4) on wheel carrier (2) | ||
| 7 | Clean RPM sensor (L6/3 and L6/4) | When reusing RPM sensor (L6/3 and L6/4) | |
| 8 | Install in the reverse order | ||
| 9 | Read out fault memory with STAR DIAGNOSIS and erase if necessary |
REAR AXLE RPM SENSOR
| Number | Designation | Model 209 | |
|---|---|---|---|
| BA42.30-P-1001-02A | Self-locking bolt of rear axle RPM sensor to wheel carrier | Nm | 8 |
