Remove/install rear loudspeaker cover - AR68.30-P-3445TA

WARNING: This page is about a different car, the 2009 Mercedes-Benz E350 and 2008 Mercedes-Benz E350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 211.2 with CODE (810) Sound system

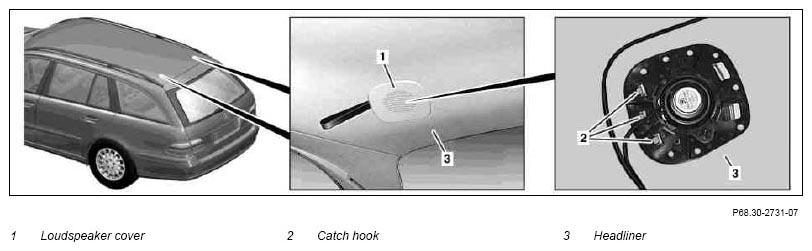

Fig 1: Identifying Rear Loudspeaker Cover Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
1	Unlock catch hooks (2) from loudspeaker cover (1) with long wedge one after the other.	Ensure that headliner (3) is not soiled or damaged. Carefully unclip loudspeaker cover (1), danger of breaking it.
			*115589035900
2	Remove loudspeaker cover (1)
3	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
