Removing and installing combination switch - AR54.25-P-2800TA
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211.0/2/6
As of model year 04
| Remove/install | |||
| 1 | Remove steering angle sensor | AR46.10-P-0300TA | |
| 2.1 | Remove switch for steering wheel heater and steering column adjustment | Vehicles with memory package (driver's seat, steering column, mirrors) code 275 | AR46.11-P-0004T |

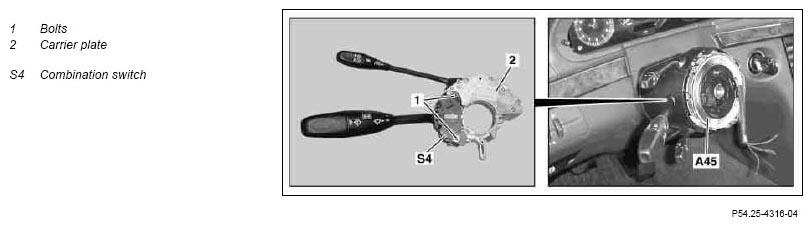

| 3 | Unscrew bolts (1) | ||
| 4 | Remove combination switch (S4) from the carrier plate (2) | ||
| 5 | Install in the reverse sequence | ||
| 6 | Perform function check on combination switch (S4) |
