Carry out distance and comparative measurements on rear axle - AR40.30-P-0402-02T

WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.

MODIFICATION NOTES

17.8.04

Dimension H7 and H9 revised.

*BE40.30-P-1001-05B

TEST VALUES FOR DISTANCE AND COMPARATIVE MEASUREMENTS ON REAR AXLE

Number	Designation			Model 211
BE40.30-P-1001-05B	Dimension	H1	mm	-
		H2	mm	3
		H4	mm	-
		H5	mm	6
		H6	mm	1032 (±2)
		H7	mm	1036 (±2)
		H8	mm	-
		H9	mm	1175 (±2)
		See picture		AR40.30-P-0402-02T

TEST VALUES FOR DISTANCE AND COMPARATIVE MEASUREMENTS ON REAR AXLE

Number	Designation			Model 219
BE40.30-P-1001-05F	Dimension	H1	mm	-
		H2	mm	3
		H4	mm	-
		H5	mm	6
		H6	mm	1032 (±2)
		H7	mm	1036 (±2)
		H8	mm	-
		H9	mm	1175 (±2)
		See picture		AR40.30-P-0402-02T

Fig 1: Identifying Telescopic Measuring Rod (124 589 01 19 00)

G07196521

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Telescopic Measuring Rod (124 589 02 19 00)

G07196522

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Mount (170 589 00 63 00)

G07196523

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Set Of Measurement Fixtures (168 589 07 63 00)

G07196524

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Identifying Connecting Pieces (124 589 08 63 00)

G07196525

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The measuring set is designed in such a way, that the measuring bolts, according to the measuring points at the vehicle, can be screwed together out of mounting bolts, extensions and measuring tips/bolts.

The configuration of the measuring bolts is shown in the table, where the digits in the column headed "Measuring bolt configuration" are the special tool end numbers.

For example: 02/07/10 = 168 589 07 63 02 (support stud)

168 589 07 63 07 (extension)

168 589 07 63 10 (measuring tip)

Distance and comparative measurement	Measuring bolt configuration	Telescopic measuring rod
H2	02/07/05/socket wrench bit	124 589 02 19 00
H5	02/07/05/socket wrench bit	124 589 02 19 00
H6	02/07/05/socket wrench bit	124 589 02 19 00
H7	02/07/05/socket wrench bit	124 589 02 19 00
H9	02/07/05/socket wrench bit	124 589 02 19 00

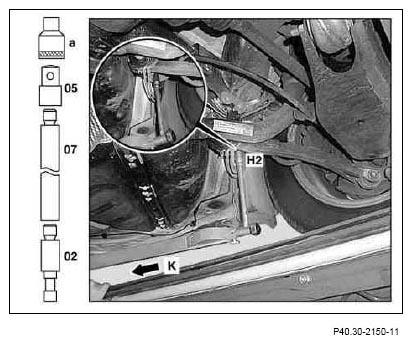

Measure comparative measurement (H2) from check point (K) to centering point of the Torx bolt head of the front mount of the rear axle carrier, left to right.
If necessary, unscrew and screw in torx bolt and check for bending.

Shows on model 211

Fig 6: Measuring Distance Between Check Point To Centering Point Of Front Mount Of Rear Axle Carrier
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

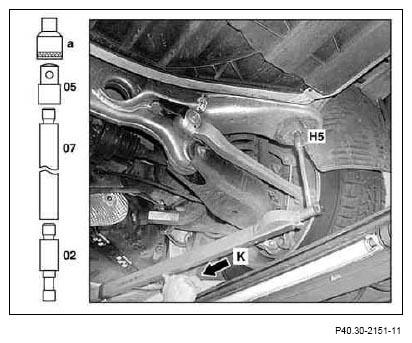

Comparative measurement (H5) from check point (K) to the centering point of the Torx bolt head of the rear mount of the rear axle carrier, left to right.
Unscrew and screw in Torx bolts if necessary and check for bending.

Shows on model 211

Fig 7: Measuring Distance Between Check Point And Centering Point Of Rear Mount Of Rear Axle Carrier
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

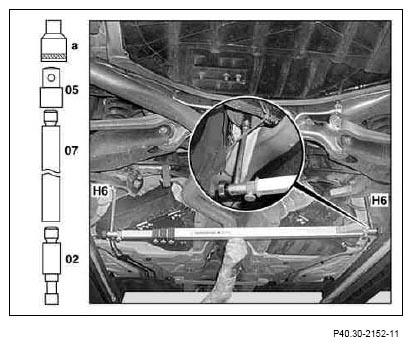

Measure distance dimension (H6) from the centering point of the Torx bolt heads between the front bearings of the rear axle carrier.
Shows on model 211

Fig 8: Measuring Distance Between Front Bearings Of Rear Axle Carrier
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

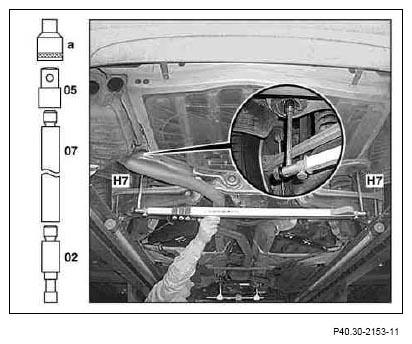

Measure distance dimension (H7) from the centering point of the Torx bolt heads between the rear bearings of the rear axle carrier.
Shows on model 211

Fig 9: Measuring Distance Between Front Bearings Of Front Axle Carrier
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

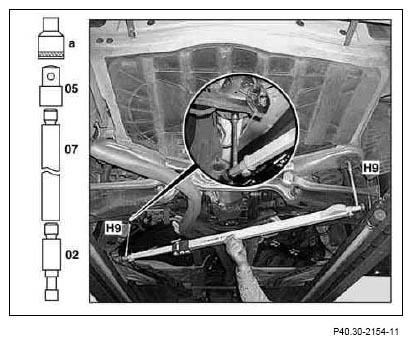

Measure comparative measurement (H9) diagonally from the centering point of the Torx bolt heads between the front and rear mount of the rear axle carrier, left to right.
Shown on model 211

Fig 10: Measuring Distance Diagonally Between Front And Rear Mount Of Rear Axle Carrier
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
