Remove/install side air nozzle - AR68.10-P-1100T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211.0/2/6

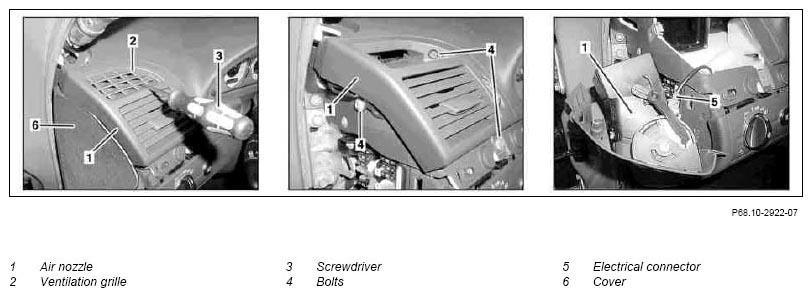

Shown on left door air nozzle
MODIFICATION NOTES
| 8.1.04 | Disconnect/connect/remove ground lead from battery |
| Remove/Install | |||
| 1 | Remove door sealing frame in area of cover (6) and unclip cover (6) from instrument panel with mounting wedge | *110589035900 | |
| 2 | Remove trim strip on instrument panel | AR68.10-P-1180T | |
| 3 | Unclip vent grille (2) from the air nozzle (1) using a suitable screwdriver (3) | ||
| 4 | Remove bolts (4) | ||
| 5 | Remove air nozzle (1) from instrument panel until electrical connector (5) is accessible | ||
| 6 | Disconnect electrical connector (5) and remove air nozzle (1) | ||
| 7 | Install in the reverse order |
