Remove/install paneling on A-pillar - AR68.30-P-4050T

WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 211.0/2/6

Paneling on upper A-pillar

Shown on model 211.0 with code (290) Windowbag

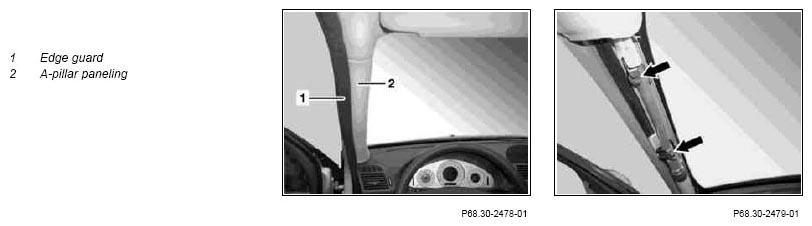

Fig 1: Identifying Upper A-Pillar Paneling Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Note on function reliability of windowbag		AH91.60-P-0693-01A
1	Remove edge guard (1) in area of A-pillar paneling (2)
2	Press A-pillar paneling (2) off of A-pillar	Move assembly wedge directly to each clip (arrows) and press off.
2	Press A-pillar paneling (2) off of A-pillar	Installation: Check whether clips (arrows) are seated tightly.	*110589035900
3	Remove A-pillar paneling (2) out of instrument panel guide upward
4	Install in the reverse order

Fig 2: Identifying Wedge Tool (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
