Remove/install cover for loudspeaker - AR68.10-P-1050T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211.0/2/6 up to 31.5.04

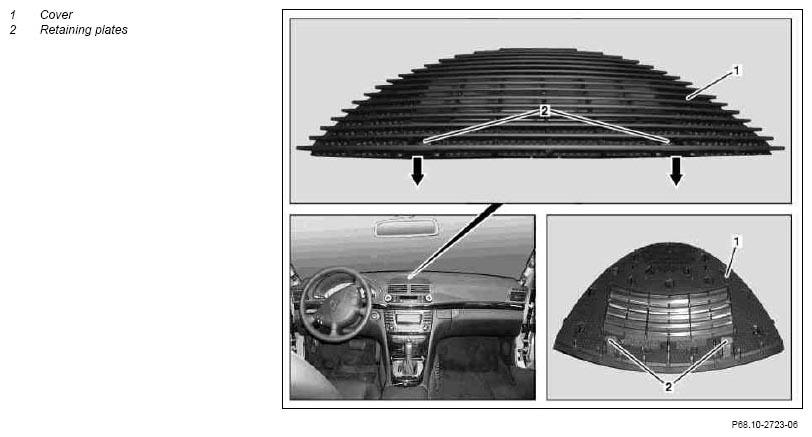

Fig 1: Identifying Cover And Retaining Plates
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Remove/Install
1
Release retainer tabs (2) with screwdriver in the direction of the arrow
2
Pull cover (1) toward rear out of instrument panel
