Remove/install cover below instrument panel (right) - AR68.10-P-1520T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211.0/2/6

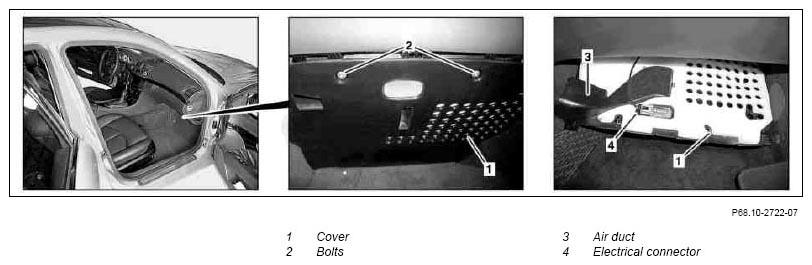

Shown on model 211.0
MODIFICATION NOTES
| 8.1.04 | Disconnect/connect/remove ground lead from battery |
| Remove/Install | ||
| 1 | Move front passenger's seat all the way to the rear | |
| 2 | Switch off interior lighting | |
| 3 | Unscrew bolts (2) | |
| 4 | Fold cover (1) downward | |
| 5 | Disconnect electrical connector (4) | |
| 6 | Remove cover (1) to the rear out of the footwell | |
| 7 | Install in the reverse order |
