Remove/install center stowage compartment - AR68.10-P-1620T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211.0/2/6 up to 1.6.08 except CODE (809) Model year 2009 except CODE (819) CD changer
| Remove/install | |||
| 1 | Remove ashtray from front center console | AR68.20-P-2400T | |
| 2 | Unclip electrical connector (2) out of the bracket (3) | ||
| 3 | Remove bolts (4) | ||

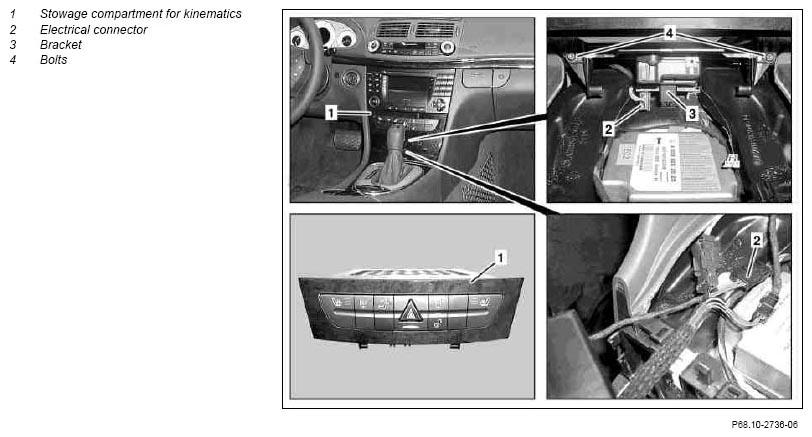

| 4 | Pull kinematics stowage compartment (1) out of center console until electrical connector (2) is accessible | ||
| 5 | Unplug electrical connector (2) and remove stowage compartment for kinematics (1). | See: ↓ |
|
| Remove/install upper control panel control unit | AR54.21-P-1262T | ||
| 6 | Install in the reverse order |
