Separating wheelhouse on fender side - AR62.20-P-1200-12T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1002-01A | Ball cutter, dia. 12 mm |
| WH58.30-Z-1006-01A | Vario Drill WS 91 spot weld removing tool |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1002-03A | Straight grinder (electric/pneumatic) |
| WE58.40-Z-1004-03A | Body saw (electric/pneumatic) |

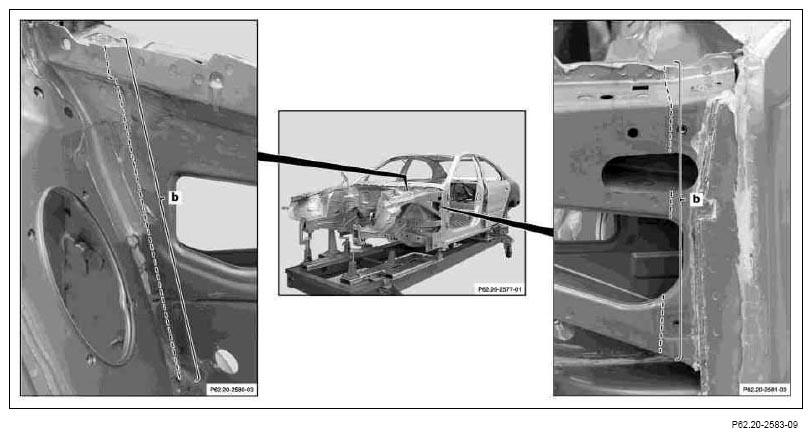

- Mark separation point on longitudinal member top and separate with body saw (area b).
Completely separate longitudinal member at inner and outer top.

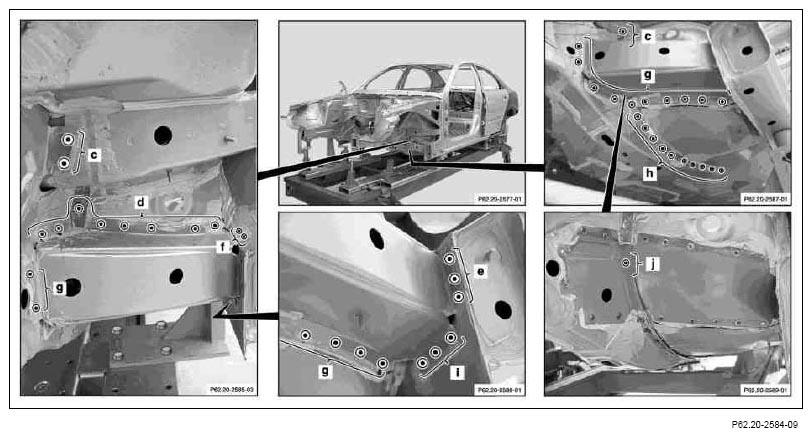

- Expose spot welds and cut out with spot weld cutter (areas c, d, e, f, g, h and i).
- Remove cross member from pedal floor on left.
- Expose spot welds and cut out with spot weld cutter (area j).
