Separate wheelhouse on passenger compartment side - AR62.20-P-1200-11T
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1002-01A | Ball cutter, dia. 12 mm |
| WH58.30-Z-1001-03A | Round wire brush, braided, dia. 70 mm |
| WH58.30-Z-1001-40A | Tarp (fire-resistant) |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1002-03A | Straight grinder (electric/pneumatic) |

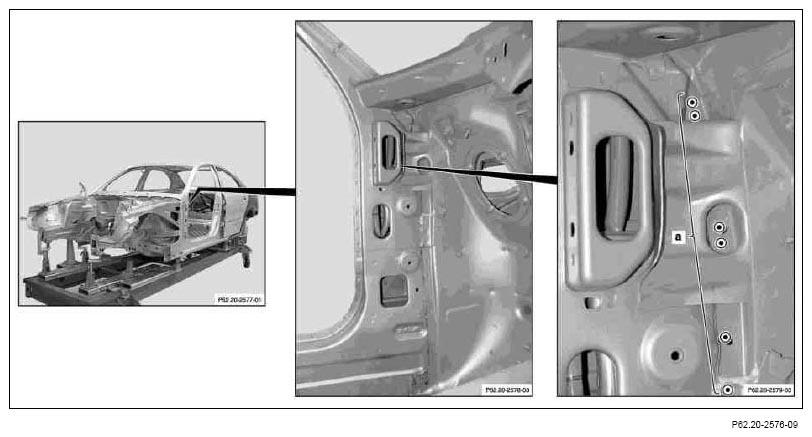

- Expose spot welds and cut out with spot weld cutter (area a).
