Installing test and welding device - AR62.20-P-1286-04TA

WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Test And Welding Device (211 589 01 23 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Test And Welding Device (211 589 02 23 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Test and welding device

Fasten adapter sleeve (01a) to test and welding device (01) with screws (01c) and washers (01b).

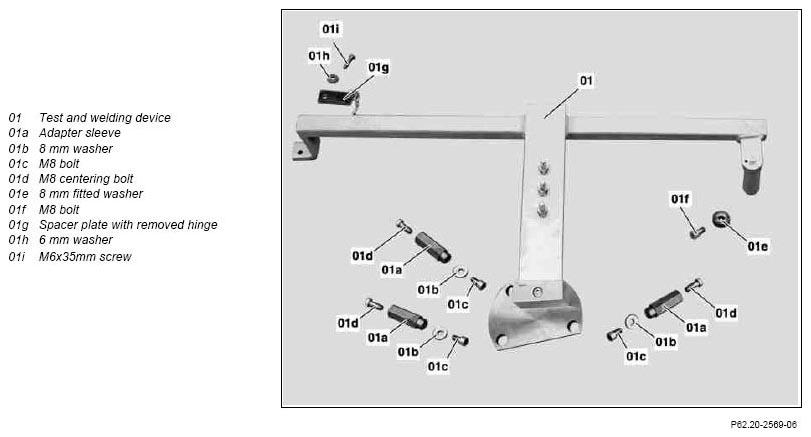

Fig 3: Identifying Test And Welding Device Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

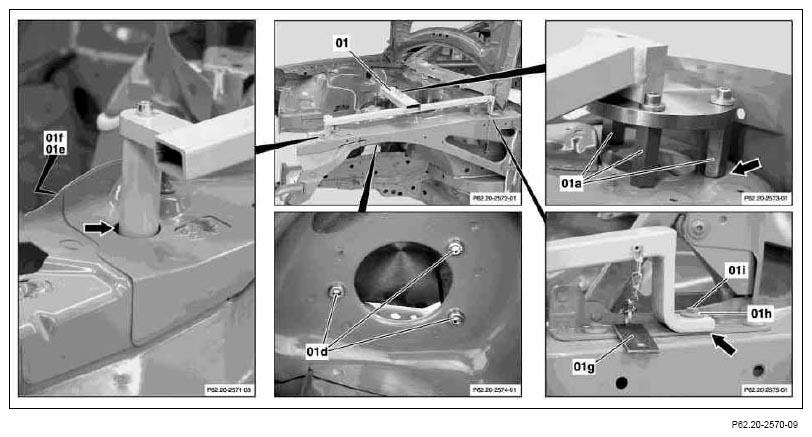

Fig 4: Positioning Test And Welding Device
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Install test and welding device
Position test and welding device (01) to spring strut dome, engine hood hinge and upper front longitudinal member (arrows).
Screw centering screw (01d) into adapter sleeves (01a) from bottom.
Screw screw (01i) and washer (01h) into threaded hole on engine hood hinge.
Use spacer plate (01g) with hinge removed.
Screw screw (01f) and fitted washer (01e) into test and welding device at engine side.
