Install test and welding device - AR62.20-P-1286-04TE

WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.

MODIFICATION NOTES

18.3.08

Value modified: Nut, front suspension strut to front end

*BA32.25-P-1001-04B

SUSPENSION STRUTS

Number	Designation		Model 211 steel suspension	Model 211 Airmatic
BA32.25-P-1001-04B	Nut, front suspension strut to front end	Nm	30	30

Fig 1: Identifying Test And Welding Device (211 589 01 23 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Identifying Test And Welding Device (211 589 02 23 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Test and welding device

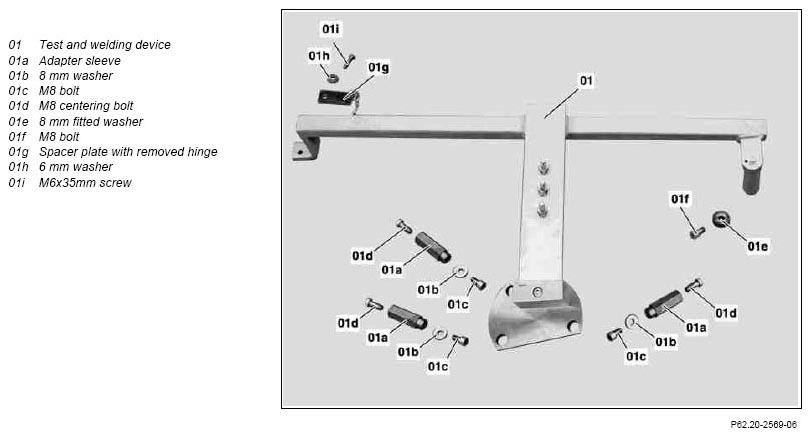

Fig 3: Identifying Test And Welding Device Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

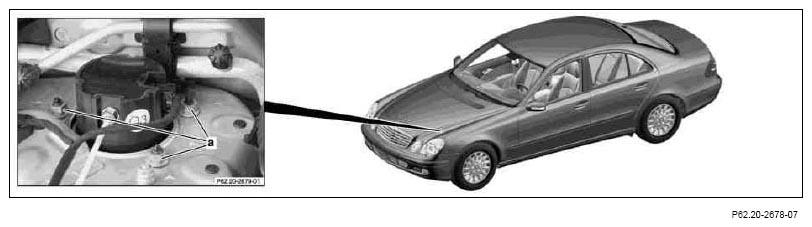

Fig 4: Identifying Front Spring Strut Nuts

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Prepare vehicle for installation of test and welding device

Remove front spring strut nut from front end (a).

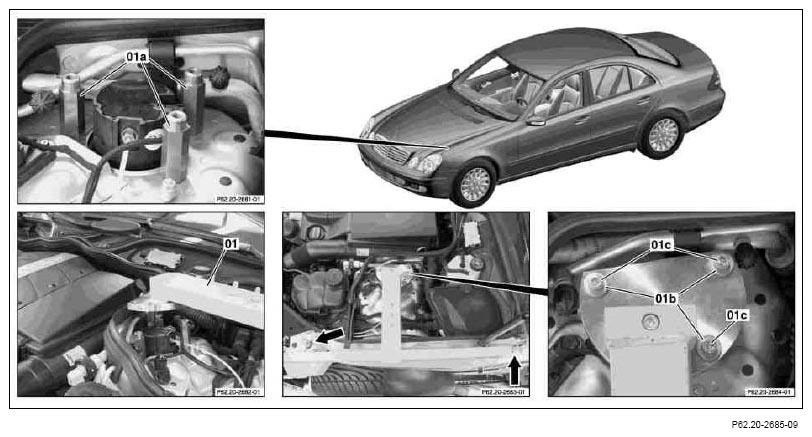

Fig 5: Positioning Test And Welding Device To Spring Strut Dome
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Install test and welding device
Loosely screw adapter sleeve (01a) on spring strut dome to spring strut.
Position test and welding device (01) to spring strut dome, engine hood hinge and upper front longitudinal member (arrows).
Tighten adapter sleeves (01a).
Screw test and welding device (01) and adapter sleeve (01a) to washer (01b) and screw (01c).

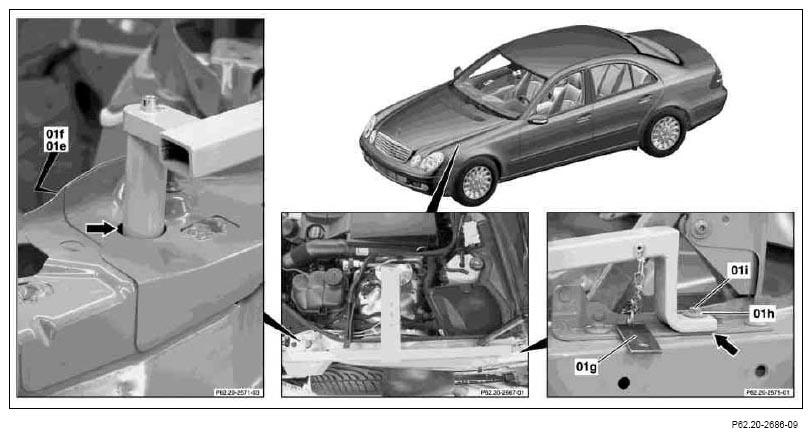

Fig 6: Screwing Screw With Washer Into Threaded Hole Of Engine Hood Hinge
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Screw screw (01i) with washer (01h) into threaded hole of engine hood hinge.
When performing check work fasten screw (01f) and fitted washer (01e) to test and welding device (01) from bottom.
