Remove/install track rod - AR46.40-P-0200TM
WARNING: This page is about a different car, the 2009 Mercedes-Benz E550 and 2008 Mercedes-Benz E550. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 211.08/09/28/29
MODIFICATION NOTES
| 20.1.05 | Reference to adjusting toe on front axle replaced by reference to chassis alignment | Step 6 |
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle | AR00.60-P-1000T | |
| 2 | Remove front wheels | ||
| Remove/install wheels, rotate if necessary | AP40.10-P-4050Z | ||

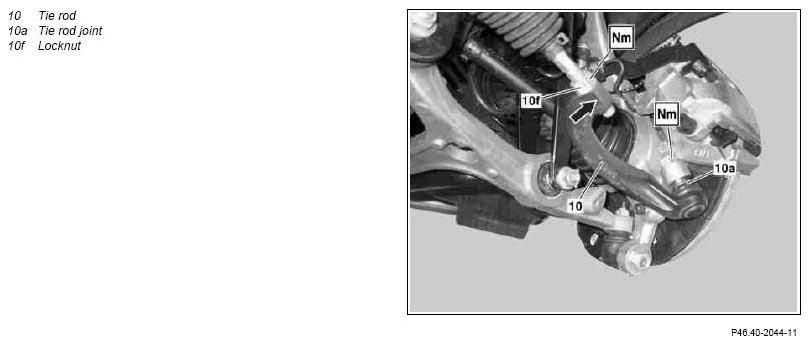

| 3 | Press track rod joint (10a) out of steering knuckle assembly. | AR46.40-P-0200-02IW | |
| *BA46.40-P-1001-01E | |||
| *140589006300 | |||
| *124589023300 | |||
| 4 | Release locknut (10f) and unscrew track rod (10) | *BA46.40-P-1002-01E | |
| 5 | Install in the reverse order | ||
| 6 | Perform chassis alignment | AR40.20-P-0200T |
TIE ROD
| Number | Designation | Model 211.08/09/28/29 | ||
|---|---|---|---|---|
| BA46.40-P-1001-01E | Self-locking nut, tie rod to steering knuckle | Stage 1 | Nm | 55 |
| Stage 2 | ∠° | - | ||
| BA46.40-P-1002-01E | Lock nut, tie rod to inner tie rod | Nm | 60 |
