Retrofit ski bag housing - AN91.22-P-0001-03SC

1. Install rear shelf reinforcement (3), tighten bolts (1) and nuts (2).

   Note torque of bolts (1) and nuts (2).

2. Fit drip protection (6) to strut of rear shelf reinforcement (3).

   Ensure correct seating of drip protection (6). Catches (arrow) of drip protection (6) must close tightly around struts of rear shelf reinforcement (3).

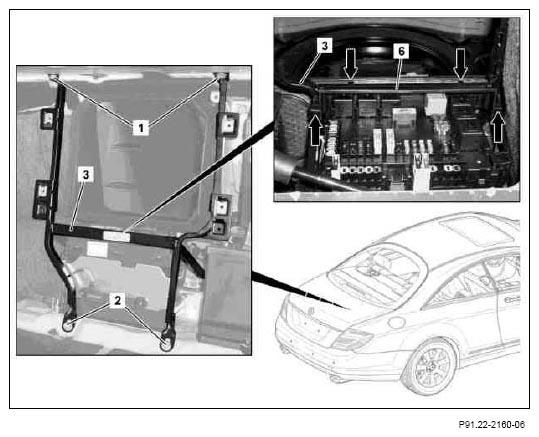

   Fig 1: Identifying Rear Shelf Reinforcement, Bolts And Nuts

   Courtesy of MERCEDES-BENZ USA
3. Install stowage box/tray (5) with through-loading function and tighten bolts (4).

Flap of stowage box/tray (5) with through-loading function can be opened and closed through operation of handle (7).

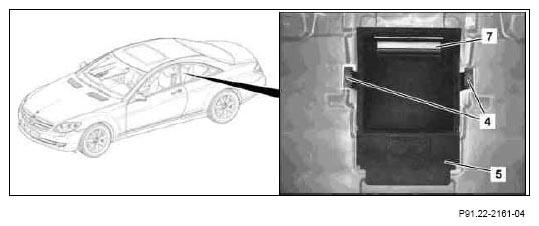

Fig 2: Identifying Stowage Box/Tray And Bolts

Courtesy of MERCEDES-BENZ USA
