Disconnect/connect front axle multiple circuit junction connector - AR33.10-P-0100-06SX

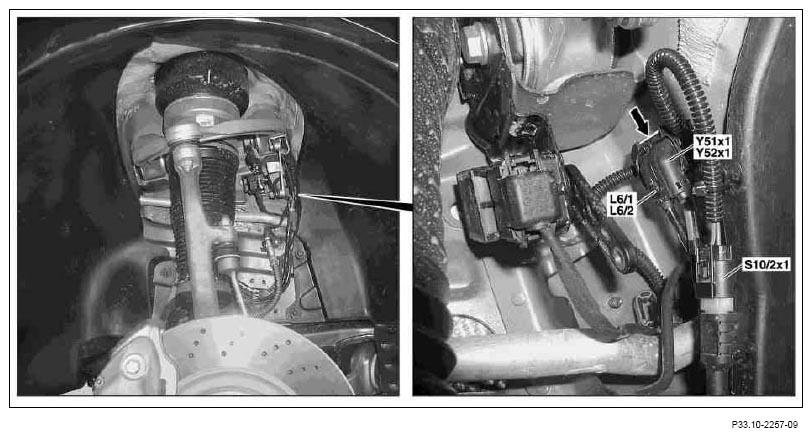

Fig 1: Identifying Distributor Spring Detent

Courtesy of MERCEDES-BENZ USA

Press spring detent onto distributor (arrow) and
- Connector of left front rpm sensor and right front rpm sensor (L6/1, L6/2)
- Pull left, right front axle damping valve unit connector (Y51x1, Y52x1) (vehicles without Active Body Control (ABC) code 487)
out of distributor.
When replacing the left, right front rpm sensor (L6/1, L6/2):
Unclip the electrical feed line (4) of the front left and front right speed sensor (L6/1, L6/2) from the brackets (5, 6) on the spring control arm, steering knuckle and longitudinal member.

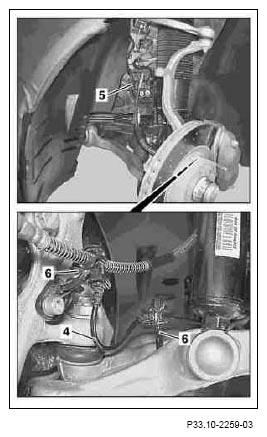

Fig 2: Identifying Electrical Feed Line Of Front Left And Front Right Speed Sensor And Brackets
Courtesy of MERCEDES-BENZ USA

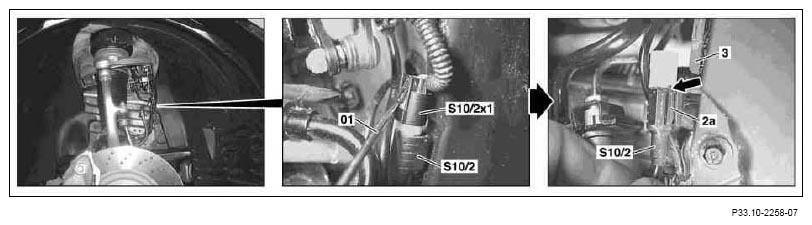

Fig 3: Identifying Removing Right Front Brake Pad Contact Sensor Connector
Courtesy of MERCEDES-BENZ USA
Unlock right front brake pad contact sensor connector (S10/2x1) of the right front brake pad contact sensor (S10/2) with screwdriver (01).
Press notch (2a) in the direction of the arrow and detach right front brake pad contact sensor connector (S10/2) downwards from bracket (3).
Unclip electric feed line of right front brake pad contact sensor (S10/2) from the wiring.
