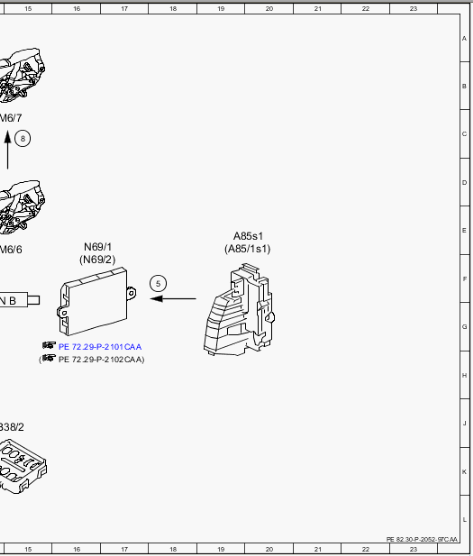

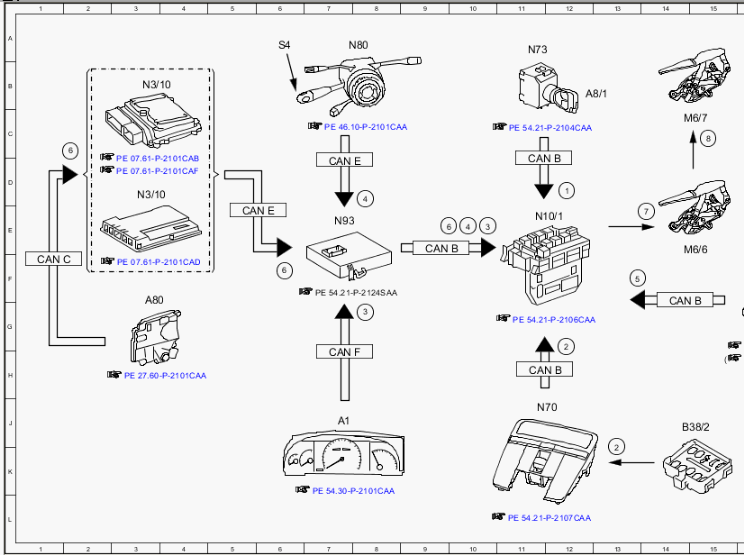

Electrical function schematic for wiper startup suppression - PE82.30-P-2052-97CAA
MODEL 216.3 as of model year 09/YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 12D |
| 2 | Rain/light sensor, status | 12G |
| 2 | Rain/light sensor, status | 13J |
| 3 | Vehicle speed, signal | 10E |
| 3 | Vehicle speed, signal | 8G |
| 4 | Combination switch, status | 8D |
| 4 | Combination switch, status | 10E |
| 5 | Door rotary tumbler switch, status | 13F |
| 5 | Door rotary tumbler switch, status | 17F |
| 6 | Transmission mode, signal | 9E |
| 6 | Transmission mode, signal | 2C |
| 6 | Transmission mode, signal | 6F |
| 7 | Master wiper motor, actuation | 14E |
| 8 | Slave wiper motor, actuation | 15C |
| A1 | Instrument cluster | 7J |
| A8/1 | Transmitter key | 12B |
| A80 | Intelligent servo module for DIRECT SELECT | 3F |
| A85/1s1 | Right rotary tumbler switch | 19E |
| A85s1 | Left rotary tumbler switch | 19E |
| B38/2 | Rain/light sensor | 14J |
| CAN B | Interior CAN | 9E |
| CAN B | Interior CAN | 11H |
| CAN B | Interior CAN | 11C |
| CAN B | Interior CAN | 14F |
| CAN C | Drive train CAN | 1F |
| CAN E | Chassis CAN | 7D |
| CAN E | Chassis CAN | 5D |
| CAN F | Central CAN | 7G |
| M6/6 | Master wiper motor | 14E |
| M6/7 | Slave wiper motor | 14C |
| N10/1 | Front SAM control unit with fuse and relay module | 11E |
| N3/10 | ME-SFI [ME] control unit | 3D |
| N3/10 | ME-SFI [ME] control unit | 3B |
| N69/1 | Left door control unit | 16E |
| N69/2 | Right door control unit | 16F |
| N70 | Overhead control panel control unit | 11J |
| N73 | EIS [EZS] control unit | 11A |
| N80 | Steering column module | 7A |
| N93 | Central gateway control unit | 7E |
| S4 | Combination switch | 6A |
