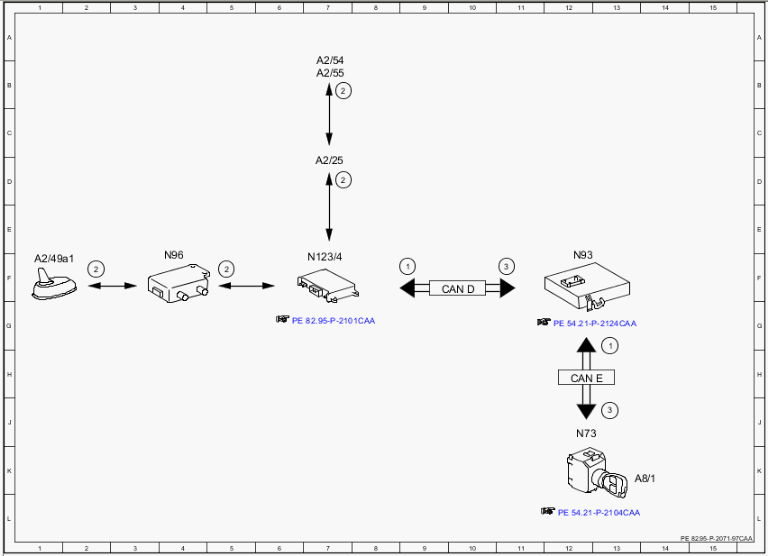

Electrical function schematic for vehicle remote locking function - PE82.95-P-2071-97CAA
MODEL 216 with CODE (359) TELE AID emergency call system as of model year 09/YoM 08
| Code | Designation | Location |
|---|---|---|
| 1 | Circuit 15R/circuit 15, status ON | 9F |
| 1 | Circuit 15R/circuit 15, status ON | 13G |
| 2 | Telephone, signal | 5F |
| 2 | Telephone, signal | 2F |
| 2 | Telephone, signal | 7D |
| 2 | Telephone, signal | 7B |
| 3 | Lock central locking, signal | 11F |
| 3 | Lock central locking, signal | 13J |
| 4 | COMAND display, message | 16B |
| A2/25 | Emergency call system antenna splitter | 7D |
| A2/49a1 | Telephone antenna | 1F |
| A2/54 | Emergency call system left backup antenna | 7A |
| A2/55 | Emergency call system right backup antenna | 7B |
| A8/1 | Transmitter ley | 14K |
| CAN D | Diagnostic CAN | 9F |
| CAN E | Chassis CAN | 12H |
| N123/4 | Emergency call system control unit | 7F |
| N73 | EIS [EZS] control unit | 12J |
| N93 | Central gateway control unit | 12E |
| N96 | Frequency switchover control unit | 4F |
