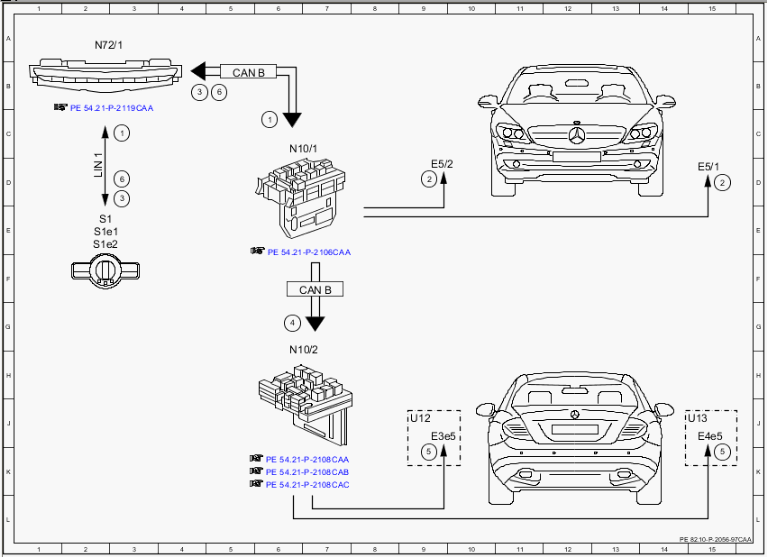

Electrical function schematic for front fog light actuation - PE82.10-P-2056-97CAA
MODEL 216.3 as of model year 2009 /YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Rotary light switch, status | 6C |
| 1 | Rotary light switch, status | 3C |
| 2 | Front fog lamp, actuation | 9D |
| 2 | Front fog lamp, actuation | 16D |
| 3 | Front fog lamps indicator lamp, actuation | 4B |
| 3 | Front fog lamps indicator lamp, actuation | 3D |
| 4 | Rear fog light, request | 6G |
| 5 | Rear fog light, actuation | 15K |
| 5 | Rear fog light, actuation | 9K |
| 6 | Rear fog light indicator light, actuation | 3D |
| 6 | Rear fog light indicator light, actuation | 5B |
| CAN B | Interior CAN | 7F |
| CAN B | Interior CAN | 5B |
| E3e5 | Left rear fog lamp | 9J |
| E4e5 | Right rear fog lamp | 15J |
| E5/1 | Left front fog lamp | 15D |
| E5/2 | Right fog lamp | 9D |
| LIN 1 | Instrument panel LIN | 2D |
| N10/1 | Front SAM control unit with fuse and relay module | 6C |
| N10/2 | Rear SAM control unit with fuse and relay module | 6G |
| N72/1 | Upper control panel control unit | 2A |
| S1 | Rotary light switch | 2E |
| S1e1 | Front fog lamps indicator lamp | 2E |
| S1e2 | Rear fog lamp indicator lamp | 2E |
| U12 | Valid for left-hand drive vehicles | 9J |
| U13 | Valid for right-hand drive vehicles | 15J |
