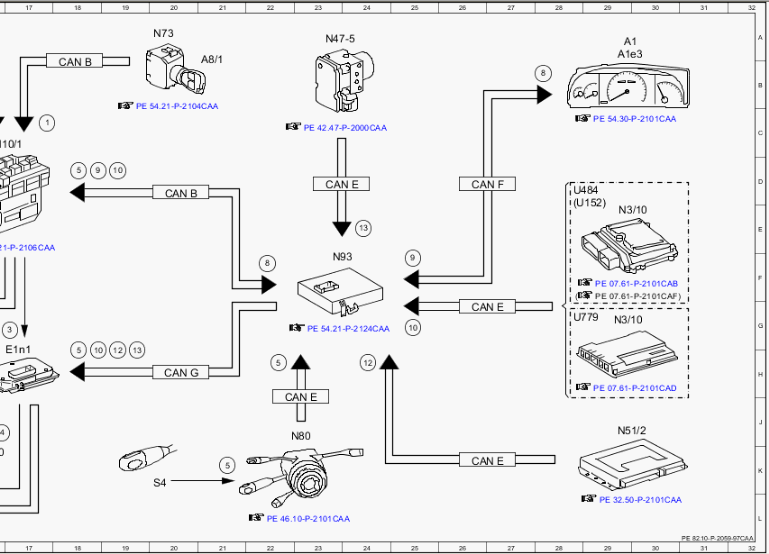

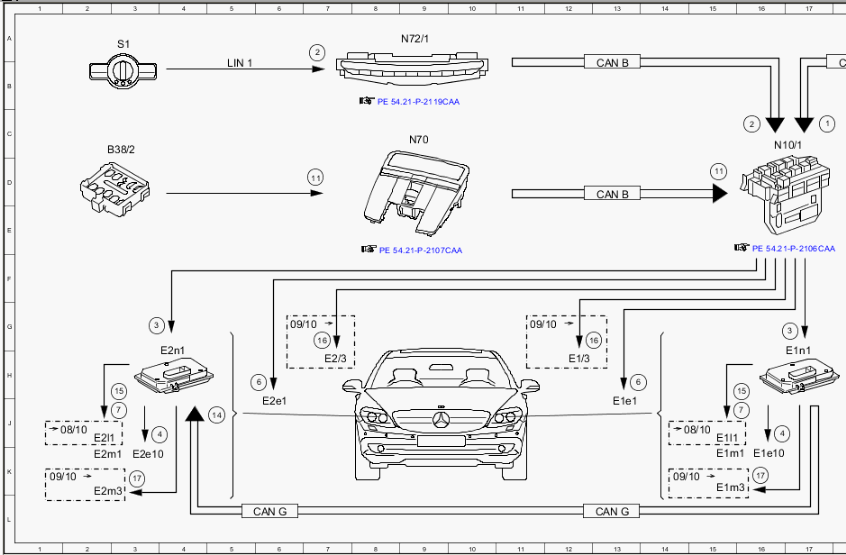

Electrical function schematic for driving light actuation - PE82.10-P-2059-97CAA
MODEL 216.3 as of model year 2009 /YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 17C |
| 10 | Circuit 61, status | 19D |
| 10 | Circuit 61, status | 18H |
| 11 | Rain/light sensor, status | 7D |
| 11 | Rain/light sensor, status | 15D |
| 12 | Level sensor, status | 24H |
| 12 | Level sensor, status | 19H |
| 13 | Wheel speed, signal | 24E |
| 13 | Wheel speed, signal | 19G |
| 14 | Synchronization, signal | 5J |
| 15 | Headlamp range adjustment motor, actuation | 16H |
| 15 | Headlamp range adjustment motor, actuation | 3H |
| 16 | Daytime running lights, actuation | 7G |
| 16 | Daytime running lights, actuation | 12G |
| 17 | Light distribution actuator motor, actuation | 16K |
| 17 | Light distribution actuator motor, actuation | 3K |
| 2 | Rotary light switch, status | 16C |
| 2 | Rotary light switch, status | 7A |
| 3 | Low beams, request | 3G |
| 3 | Low beams, request | 17G |
| 4 | Bi-xenon lamp with integrated ignition module, actuation | 16J |
| 4 | Bi-xenon lamp with integrated ignition module, actuation | 3J |
| 5 | Combination switch, status | 21K |
| 5 | Combination switch, status | 22H |
| 5 | Combination switch, status | 18G |
| 5 | Combination switch, status | 18D |
| 6 | High beams, actuation | 6H |
| 6 | High beams, actuation | 13H |
| 7 | High beam solenoid, actuation | 16J |
| 7 | High beam solenoid, actuation | 3J |
| 8 | High beam indicator lamp, actuation | 22F |
| 8 | High beam indicator lamp, actuation | 28B |
| 9 | Daytime running lights, request | 18D |
| 9 | Daytime running lights, request | 29F |
| A1 | Instrument cluster | 29A |
| A1e3 | High beam indicator lamp | 29A |
| A8/1 | Transmitter key | 21A |
| B38/2 | Rain/light sensor | 2C |
| CAN B | Interior CAN | 13D |
| CAN B | Interior CAN | 20D |
| CAN B | Interior CAN | 13A |
| CAN B | Interior CAN | 18A |
| CAN E | Chassis CAN | 26F |
| CAN E | Chassis CAN | 23H |
| CAN E | Chassis CAN | 26K |
| CAN E | Chassis CAN | 23D |
| CAN F | Central CAN | 26D |
| CAN G | Front end CAN | 6L |
| CAN G | Front end CAN | 13L |
| CAN G | Front end CAN | 20H |
| E1/3 | Left daytime running lamps headlamp | 12H |
| E1e1 | Left high beam/motorway spotlight | 13J |
| E1e10 | Left bi-xenon lamp with integral ignition module | 16K |
| E111 | Left high beam solenoid | 15J |
| E1m1 | Left headlamp range adjustment motor | 15K |
| E1m3 | Left light distribution actuator motor | 15L |
| E1n1 | Xenon headlamp control unit | 17G |
| E2/3 | Right daytime running lamps headlamp | 7H |
| E2e1 | Right high beam/motorway spotlight | 6J |
| E2e10 | Right bi-xenon lamp with integral ignition module | 3K |
| E211 | Right high beam solenoid | 2J |
| E2m1 | Right headlamp range adjustment motor | 2K |
| E2m3 | Right light distribution actuator motor | 2K |
| E2n1 | Xenon headlamp control unit | 4G |
| LIN 1 | Instrument panel LIN | 5A |
| N10/1 | Front SAM control unit with fuse and relay module | 16C |
| N3/10 | ME-SFI [ME] control unit | 29G |
| N3/10 | ME-SFI [ME] control unit | 29E |
| N47-5 | ESP control unit | 23A |
| N51/2 | ABC control unit | 29J |
| N70 | Overhead control panel control unit | 9C |
| N72/1 | Upper control panel control unit | 9A |
| N73 | EIS [EZS] control unit | 20A |
| N80 | Steering column module | 23J |
| N93 | Central gateway control unit | 23E |
| S1 | Rotary light switch | 3A |
| S4 | Combination switch | 20K |
| U152 | Valid for engine 156 | 28D |
| U484 | Valid for M273 ME | 28D |
| U779 | Valid for engine 275 | 29G |
