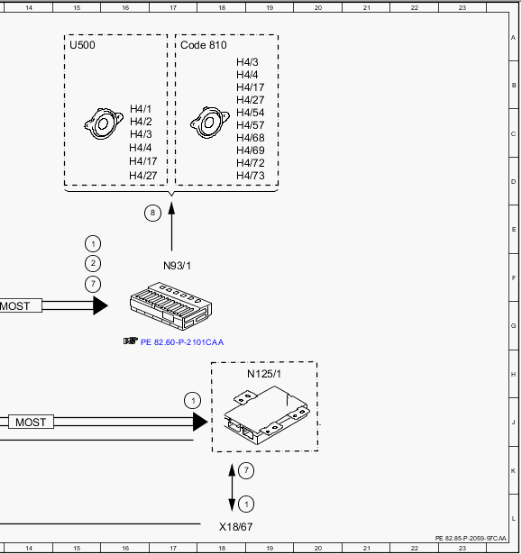

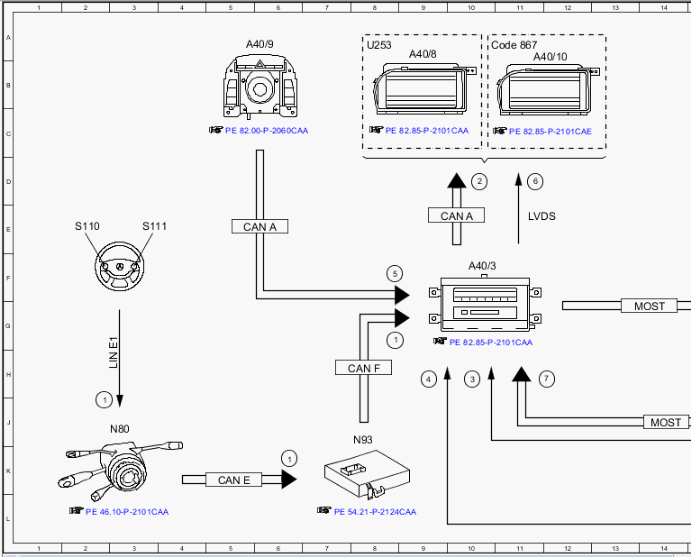

Electrical function diagram for media interface, function - PE82.85-P-2059-97CAA
MODEL 216 with CODE (518) Media interface as of model year 2010 /YoM 09
| Code | Designation | Location |
|---|---|---|
| 1 | Multifunction steering wheel button group, signal | 2J |
| 1 | Multifunction steering wheel button group, signal | 6K |
| 1 | Multifunction steering wheel button group, signal | 19L |
| 1 | Multifunction steering wheel button group, signal | 17J |
| 1 | Multifunction steering wheel button group, signal | 15E |
| 1 | Multifunction steering wheel button group, signal | 8G |
| 2 | Switch-on request, signal | 10D |
| 2 | Switch-on request, signal | 15F |
| 3 | Wake-up, signal | 10H |
| 4 | Video, signal | 9H |
| 4 | Circuit 15R/circuit 15, status ON | 10E |
| 6 | Audio/COMAND display, signal | 11D |
| 7 | Audio, signal | 12H |
| 7 | Audio, signal | 18K |
| 7 | Audio, signal | 15F |
| 8 | Speaker, actuation | 16E |
| A40/10 | SPLITVIEW display | 11A |
| A40/3 | COMAND control unit | 10F |
| A40/8 | COMAND display | 9A |
| A40/9 | Front central operating unit | 5A |
| CAN A | Telematics CAN | 9E |
| CAN A | Telematics CAN | 5E |
| CAN E | Chassis CAN | 5K |
| CAN F | Central CAN | 8H |
| Code 810 | Sound system | 17A |
| Code 867 | SPLITVIEW | 11A |
| H4/1 | Left door speaker group | 16B |
| H4/17 | Bass module speaker | 16D |
| H4/17 | Bass module speaker | 18B |
| H4/2 | Right door speaker group | 16C |
| H4/27 | Center cockpit speaker (centerfill) | 18B |
| H4/27 | Center cockpit speaker (centerfill) | 16D |
| H4/3 | Left door rear speaker | 16C |
| H4/3 | Left door rear speaker | 18B |
| H4/4 | Right door rear speaker | 16C |
| H4/4 | Right door rear speaker | 18B |
| H4/54 | Left rear surround speaker | 18C |
| H4/57 | Right rear surround speaker | 18C |
| H4/68 | Left door Sound tweeter | 18C |
| H4/69 | Right door Sound tweeter | 18C |
| H4/72 | Left door Sound woofer and midrange speaker group | 18D |
| H4/73 | Right door Sound woofer and midrange speaker group | 18D |
| LIN E1 | Steering LIN | 3G |
| LVDS | Low voltage differential signal | 11E |
| MOST | Media Oriented System Transport | 14J |
| MOST | Media Oriented System Transport | 14G |
| N125/1 | Media interface control unit | 19H |
| N80 | Steering column module | 3J |
| N93 | Central gateway control unit | 8J |
| N93/1 | Audio tuner control unit | 17F |
| S110 | Left multifunction steering wheel button group | 2E |
| S111 | Right multifunction steering wheel button group | 3E |
| U253 | Not valid for SPLITVIEW display | 8A |
| U500 | Not valid for Sound System | 15A |
| X18/67 | Media interface connector 1 | 18L |
