Backup camera (RFK), block diagram - GF54.65-P-0005-02SX

MODEL 221.0 /1, 216.3 with CODE (218) Backup camera up to Model Year 8

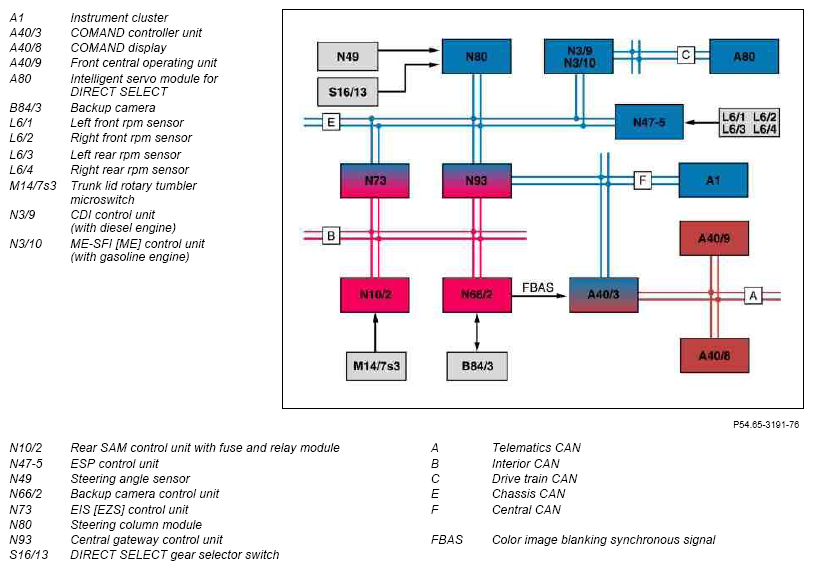

Fig 1: Backup Camera Block Diagram
G07301203Courtesy of MERCEDES-BENZ USA
