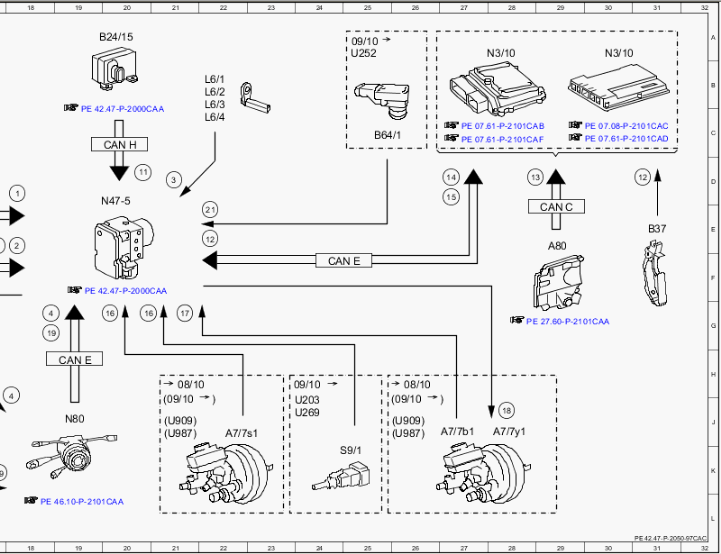

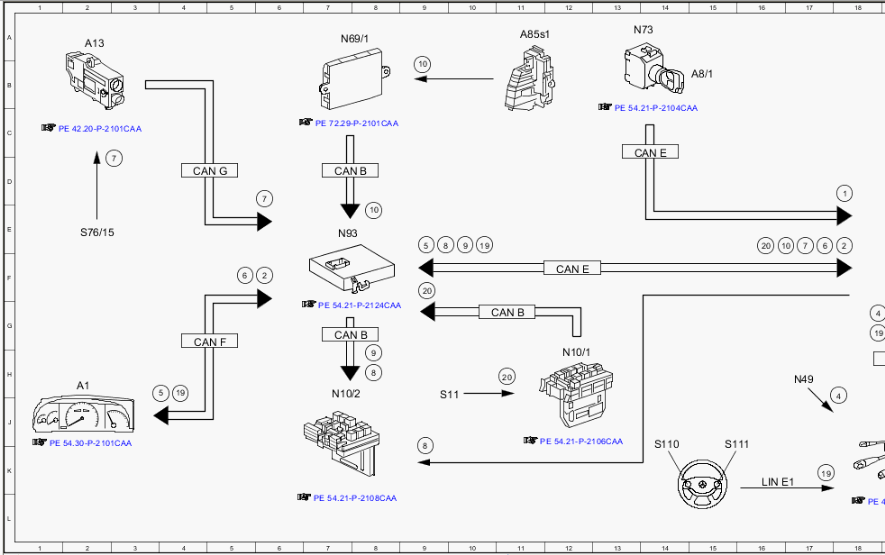

Electrical function schematic for Adaptive Brake (ABR) - PE42.47-P-2050-97CAC
MODEL 216.3 as of model year 2010 /YoM 09
| Code | Designation | Location |
|---|---|---|
| 1 | Circuit 15, status | 18D |
| 10 | Door rotary tumbler switch, status | 8E |
| 10 | Door rotary tumbler switch, status | 9B |
| 10 | Door rotary tumbler switch, status | 16E |
| 11 | Yaw rate, lateral and longitudinal acceleration sensor, signal | 20D |
| 12 | Accelerator pedal, status | 22E |
| 12 | Accelerator pedal, status | 31D |
| 13 | Transmission control, status | 28D |
| 14 | Engine torque, reduce request | 27D |
| 15 | Engine torque, increase request | 27D |
| 16 | BAS release switch, status | 20G |
| 17 | Membrane travel sensor, signal | 21G |
| 18 | Solenoid valve, actuation | 28J |
| 19 | Multifunction steering wheel button group, signal | 17K |
| 19 | Multifunction steering wheel button group, signal | 4H |
| 19 | Multifunction steering wheel button group, signal | 10E |
| 19 | Multifunction steering wheel button group, signal | 18G |
| 2 | Vehicle speed, signal | 6F |
| 2 | Vehicle speed, signal | 18E |
| 20 | Brake fluid level switch, status | 11H |
| 20 | Brake fluid level switch, status | 9F |
| 20 | Brake fluid level switch, status | 16F |
| 21 | Brake vacuum sensor, signal | 22E |
| 3 | Wheel speed, signal | 21D |
| 4 | Steering angle, signal | 18H |
| 4 | Steering angle, signal | 18G |
| 5 | Instrument cluster, message | 3H |
| 5 | Instrument cluster, message | 9E |
| 6 | ESP OFF, request | 5F |
| 6 | ESP OFF, request | 17E |
| 7 | Parking brake, status | 2C |
| 7 | Parking brake, status | 6D |
| 7 | Parking brake, status | 17E |
| 8 | Circuit 54, status | 9J |
| 8 | Circuit 54, status | 8H |
| 8 | Circuit 54, status | 9E |
| 9 | Flashing brake lights, request | 8H |
| 9 | Flashing brake lights, request | 10E |
| A1 | Instrument cluster | 2H |
| A13 | Electric parking brake control unit | 2A |
| A7/7b1 | BAS diaphragm travel sensor | 27J |
| A7/7s1 | BAS release switch | 22J |
| A7/7y1 | BAS solenoid valve | 28J |
| A8/1 | Transmitter key | 15B |
| A80 | Intelligent servo module for DIRECT SELECT | 29E |
| A85s1 | Left rotary tumbler switch | 11A |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 20A |
| B37 | Accelerator pedal sensor | 31E |
| B64/1 | Brake vacuum sensor | 25C |
| CAN B | Interior CAN | 11G |
| CAN B | Interior CAN | 7G |
| CAN B | Interior CAN | 7D |
| CAN C | Drive train CAN | 29D |
| CAN E | Chassis CAN | 13C |
| CAN E | Chassis CAN | 19H |
| CAN E | Chassis CAN | 12F |
| CAN E | Chassis CAN | 24F |
| CAN F | Central CAN | 4G |
| CAN G | Front end CAN | 4D |
| CAN H | Vehicle dynamics CAN | 20C |
| L6/1 | Left front RPM sensor | 22B |
| L6/2 | Right front RPM sensor | 22B |
| L6/3 | Left rear RPM sensor | 22B |
| L6/4 | Right rear RPM sensor | 22C |
| LIN B3 | OBF LIN | 3D |
| LIN E1 | Steering LIN | 16K |
| N10/1 | Front SAM control unit with fuse and relay module | 12G |
| N10/2 | Rear SAM control unit with fuse and relay module | 7H |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 30A |
| N47-5 | ESP control unit | 20D |
| N49 | Steering angle sensor | 17H |
| N69/1 | Left door control unit | 7A |
| N73 | EIS [EZS] control unit | 13A |
| N80 | Steering column module | 19J |
| N93 | Central gateway control unit | 7E |
| S11 | Brake fluid indicator switch | 9H |
| S110 | Left multifunction steering wheel button group | 14K |
| S111 | Right multifunction steering wheel button group | 15K |
| S76/15 | Electric parking brake switch | 2E |
| S9/1 | Stop lamp switch | 25K |
| U203 | Valid without DISTRONIC PLUS | 24J |
| U269 | Not valid for Distronic Plus (light) | 24J |
| U909 | Valid for DISTRONIC PLUS | 21J |
| U909 | Valid for DISTRONIC PLUS | 26J |
| U987 | Valid for Distronic Plus (light) | 21J |
| U987 | Valid for Distronic Plus (light) | 26J |
