Remove/install left or right rear axle speed sensor - AR42.40-P-0820SX
MODEL 216
MODEL 221
| Remove/install | |||
|---|---|---|---|
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| 1 | Remove rear wheel | ||
| Remove/install wheels | AP40.10-P-4050SX | ||

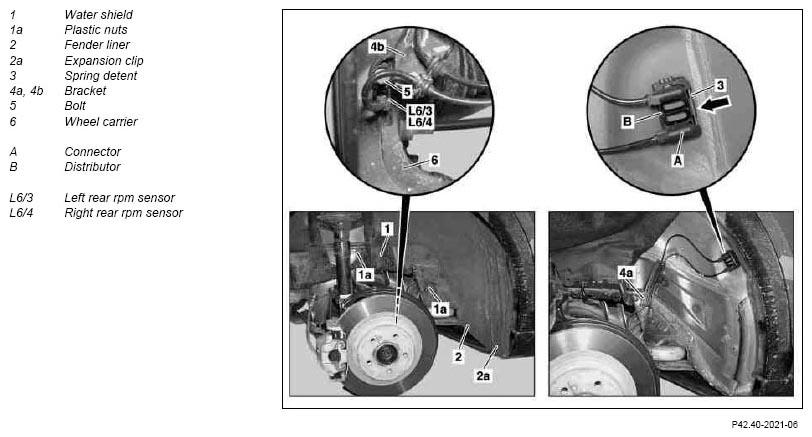

| 2 | Unscrew plastic nuts (1a) | ||
| 3 | Remove expansion clip (2a) | ||
| 4 | loosen water shield (1) and fender liner (2) in rear fender and fold away to the side | ||
| 5 | Press spring detent (3) in direction of the arrow and pull plug (A) of the RPM sensor (L6/3, L6/4) out of the distributor (B) | ||
| 6 | Remove feed line of RPM sensor (L6/3, L6/4) from brackets (4a, 4b) | ||
| 7 | Unscrew bolt (5) on RPM sensor (L6/3, L6/4) | *BA42.30-P-1001-02I | |
| 8 | Press bracket (4b) to one side and pull RPM sensor (L6/3, L6/4) out of wheel carrier (6) | ||
| Clean | |||
| 9 | Clean contact surface of RPM sensor (L6/3, L6/4) on wheel carrier (6) | ||
| 10 | Clean RPM sensor (L6/3, L6/4) | When reusing the RPM sensor (L6/3, L6/4) | |
| 11 | Install in the reverse order | ||
| 12 | Read out diagnostic trouble code memory using STAR DIAGNOSIS and erase if necessary | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
REAR AXLE RPM SENSOR
| Number | Designation | Model 216 | Model 221 | |
|---|---|---|---|---|
| BA42.30-P-1001-02I | Self-locking bolt of rear axle RPM sensor to wheel carrier | Nm | 8 | 8 |
