Electric parking brake, block diagram - GF42.20-P-0001-02SX

MODEL 221.0 /1, 216.3 up to Model Year 8

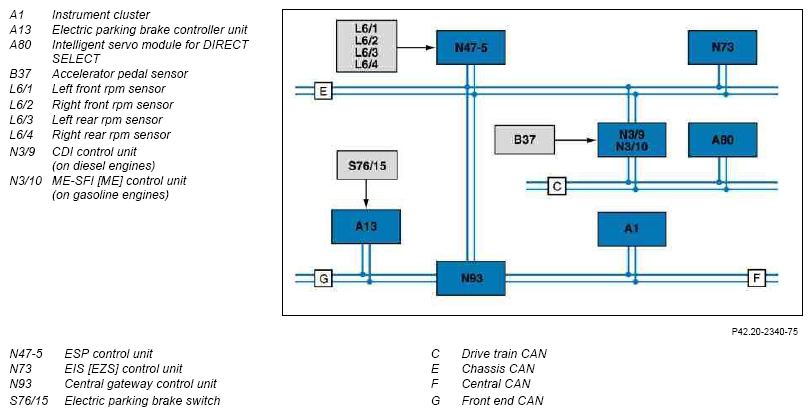

Fig 1: Electric Parking Brake Block Diagram

G07304276

Courtesy of MERCEDES-BENZ USA
