Electric parking brake, block diagram - GF42.20-P-0001-02LE

MODEL 216.3, 221.0 /1 as of Model Year 09 /AEJ 08

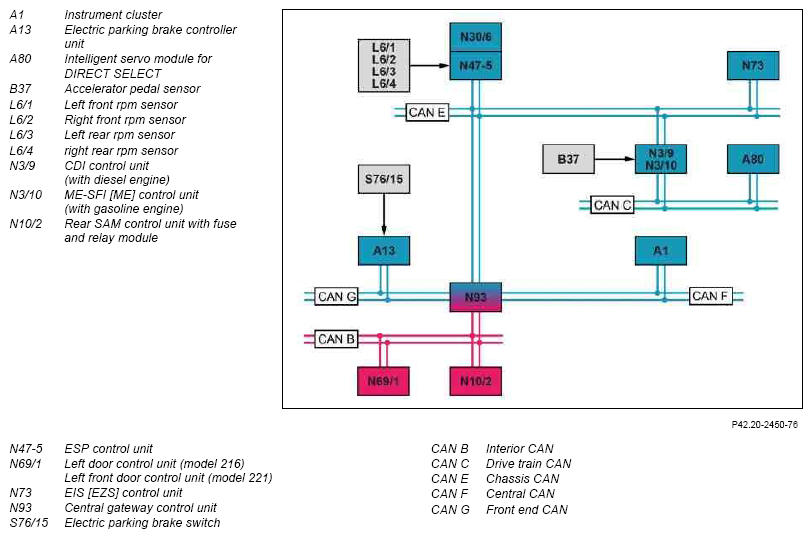

Fig 1: Electric Parking Brake Block Diagram

G07304275

Courtesy of MERCEDES-BENZ USA
