Adaptive Brake (ABR) location of components - GF42.47-P-0001-02LEA

MODEL 216.3 as of Model Year 2010 /AEJ 09

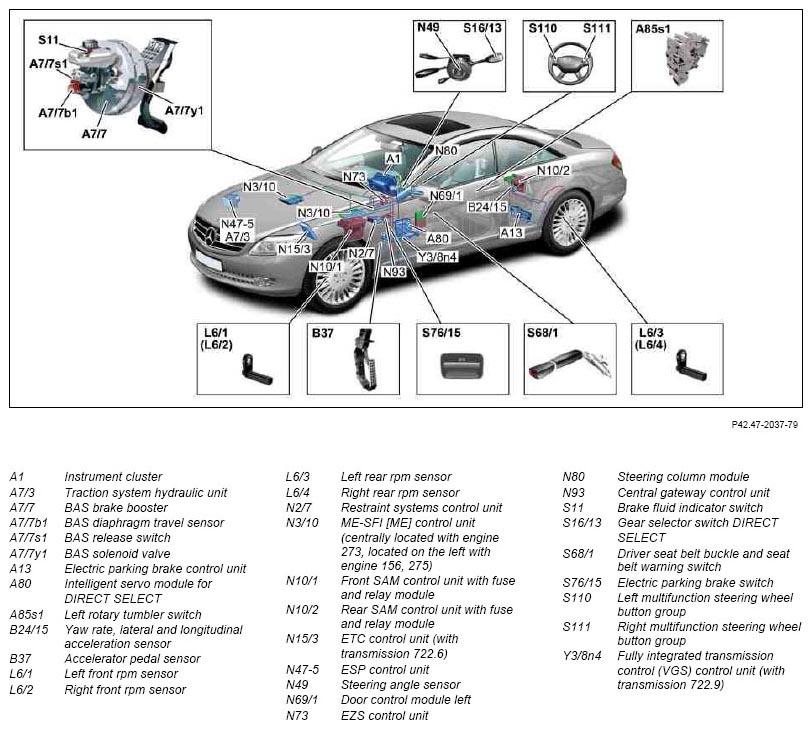

Fig 1: Locating Adaptive Brake Components - Up To 31.8.10

Courtesy of MERCEDES-BENZ USA

Shown on model 216.3 up to 31.8.10

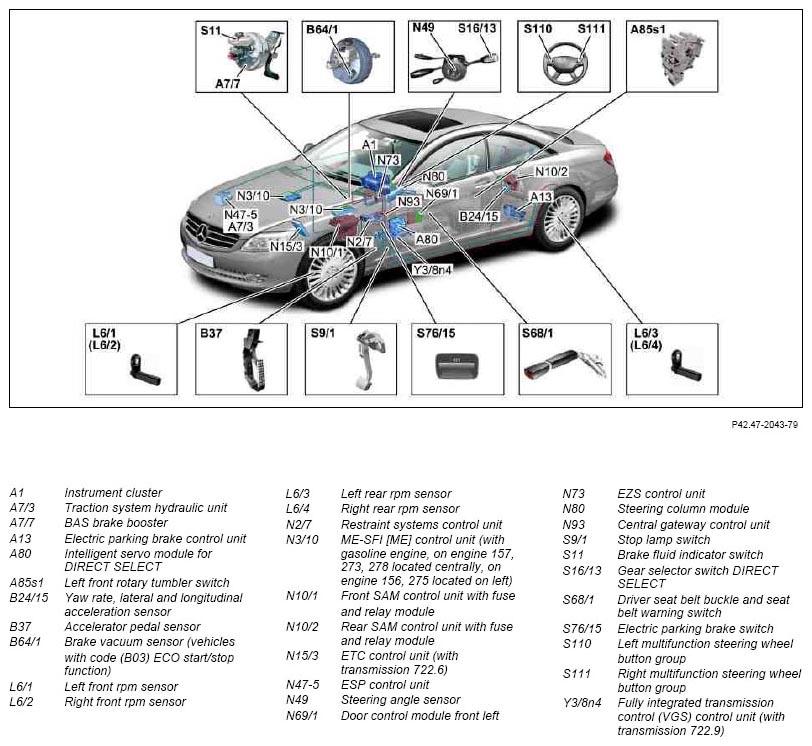

Fig 2: Locating Adaptive Brake Components - As Of 1.9.10 (With Basic System)

Courtesy of MERCEDES-BENZ USA

Shown on model 216.3 as of 1.9.10 (with basic system)
