Adaptive Brake (ABR) location of components - GF42.47-P-0001-02LE

MODEL 216.3 as of Model Year 2009 up to Model Year 2010 /AEJ 08, /AEJ 09

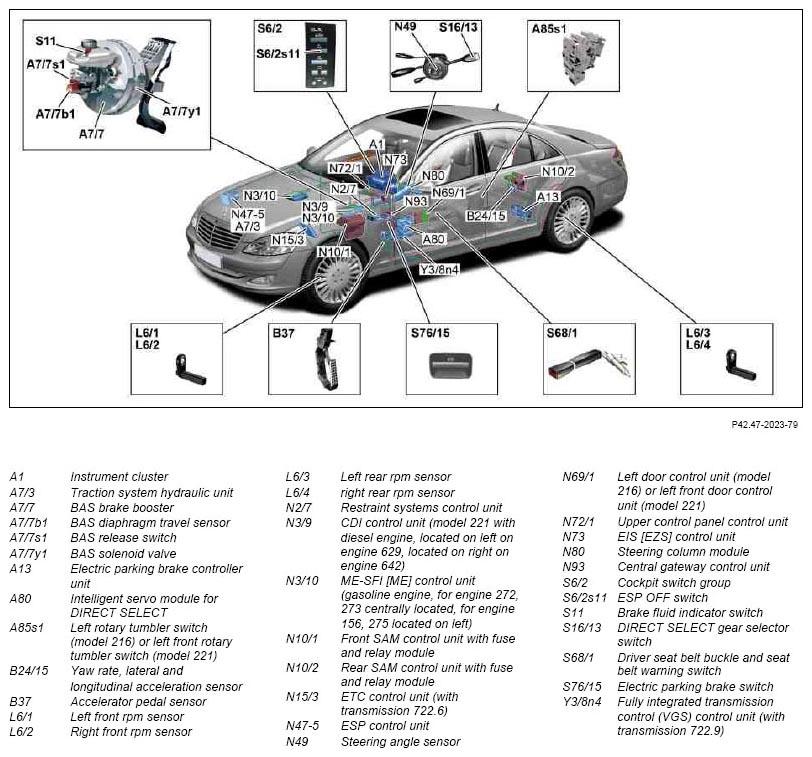

Fig 1: Locating Adaptive Brake Components

Courtesy of MERCEDES-BENZ USA

Shown on model 221.0
