Adaptive Brake (ABR) block diagram - GF42.47-P-0001-03LEA

MODEL 216.3 as of Model Year 2010 /AEJ 09

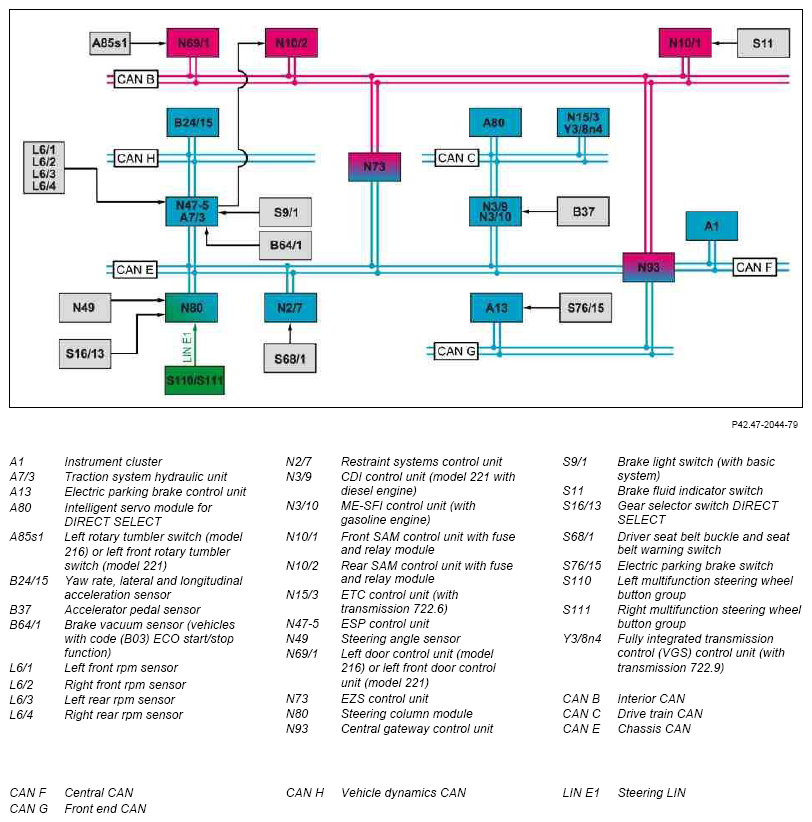

Fig 1: Adaptive Brake Block Diagram - Up To 31.8.10

Courtesy of MERCEDES-BENZ USA

Shown up to 31.8.10

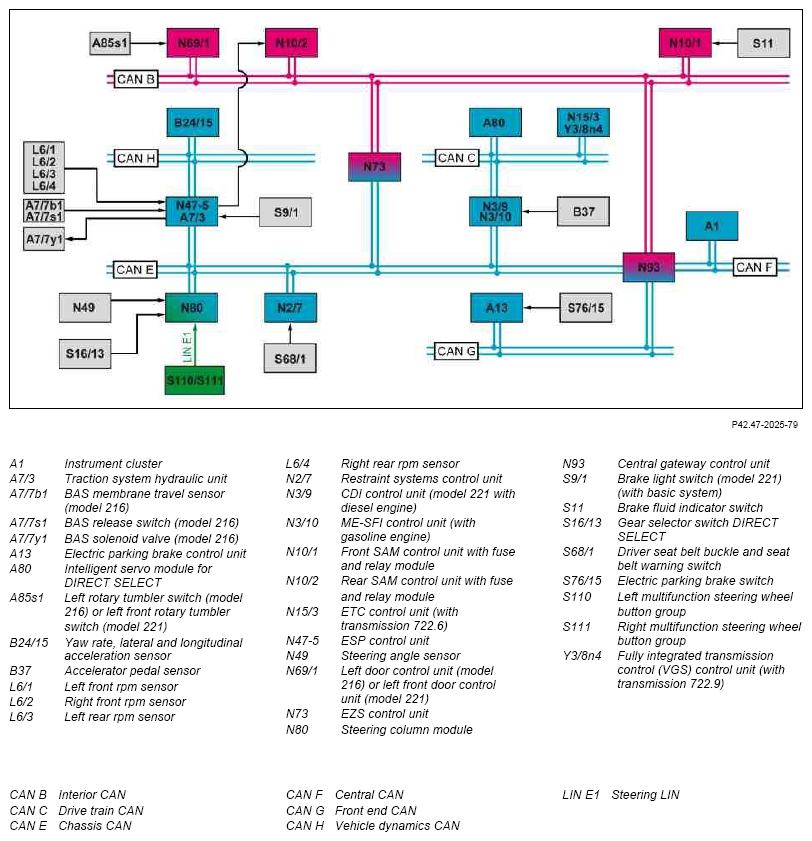

Fig 2: Adaptive Brake Block Diagram - As Of 1.9.10

Courtesy of MERCEDES-BENZ USA

Shown as of 1.9.10
