Seam sealing following repair, side damage - AR97.10-P-4000-03SC

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-01A	Sealant, white, 310 ml, DB supply specification 6069.20	A 001 989 63 20
BR00.45-Z-1041-01A	Seam sealant, sprayable 310 ml	A 002 989 84 20

Seal spot welds and rivets in repaired area with seam sealant material.
Insert plastic plugs and grommets with sealing compound. Keep sealant out of threads on weld nuts and threaded bolts by masking or covering with cardboard sleeves. Also keep drain openings and contact surfaces for axle attachments, windows and detachable parts free of sealant.

It is necessary to seal accessible spot weld flanges on both sides. If accessible from one side, only seal corresponding surface. Observe standard seals!

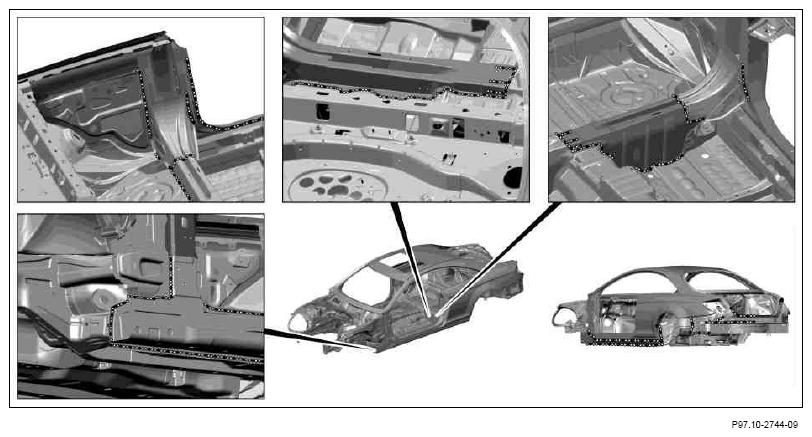

Area of A-pillar on longitudinal member, shown on left side of vehicle

Fig 1: Identifying A-Pillar On Longitudinal Member Spot Welds And Rivets Seam Sealing Area
Courtesy of MERCEDES-BENZ USA

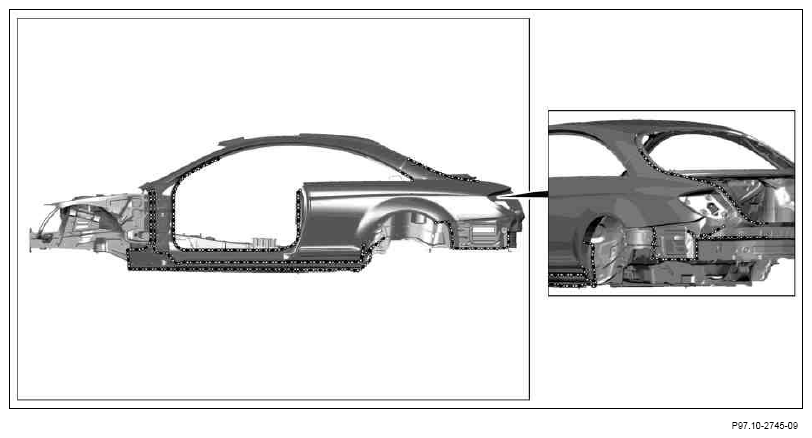

Area of inner A-pillar, shown on left side of vehicle

Fig 2: Identifying Inner A-Pillar Seam Sealing Area
Courtesy of MERCEDES-BENZ USA

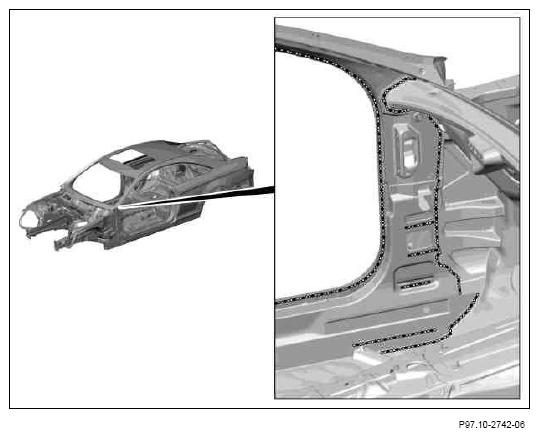

Area of A-pillar paneling, shown on left side of vehicle

Fig 3: Identifying A-Pillar Paneling Seam Sealing Area
Courtesy of MERCEDES-BENZ USA

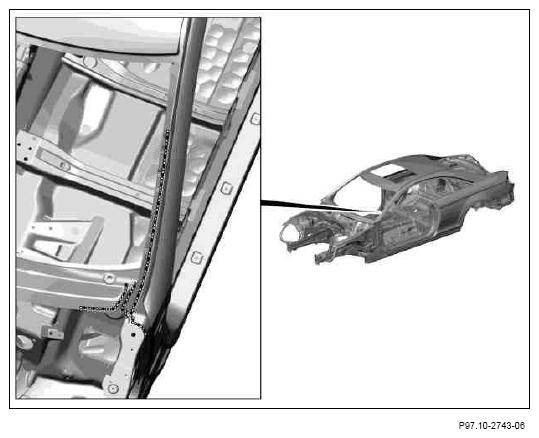

Area of B-pillar with longitudinal member, shown on left side of vehicle

Fig 4: Identifying B-pillar With Longitudinal Member Seam Sealing Area
Courtesy of MERCEDES-BENZ USA

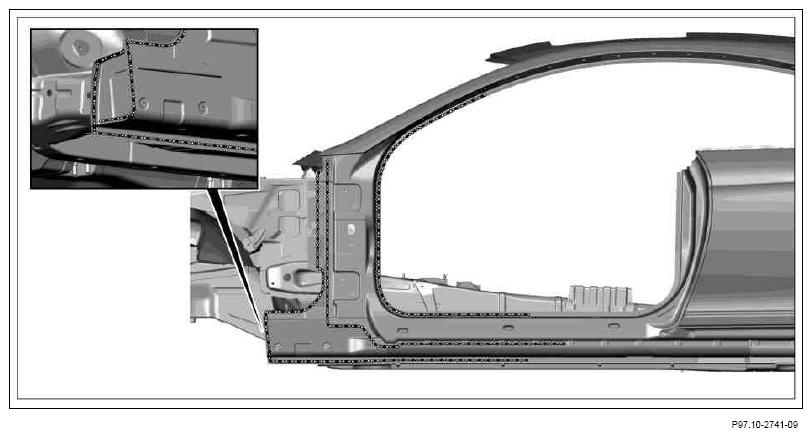

Area of longitudinal member with entire outer rear fender, shown on left side of vehicle

Fig 5: Identifying Longitudinal Member With Entire Outer Rear Fender Seam Sealing Area
Courtesy of MERCEDES-BENZ USA

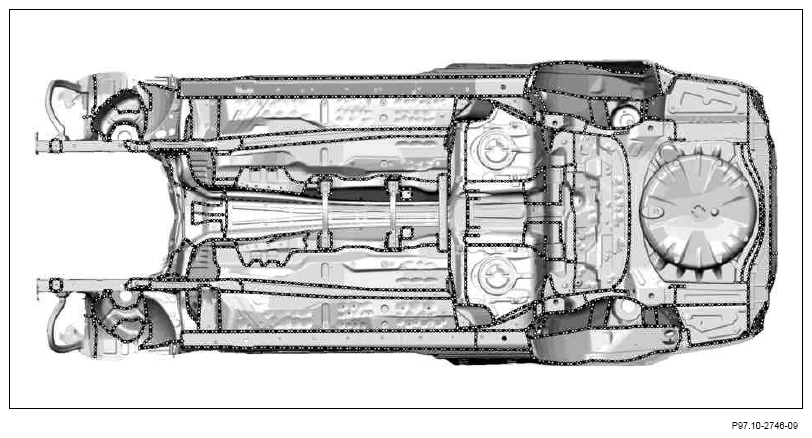

Overall underfloor area

Fig 6: Identifying Underfloor Seam Sealing Area
Courtesy of MERCEDES-BENZ USA
