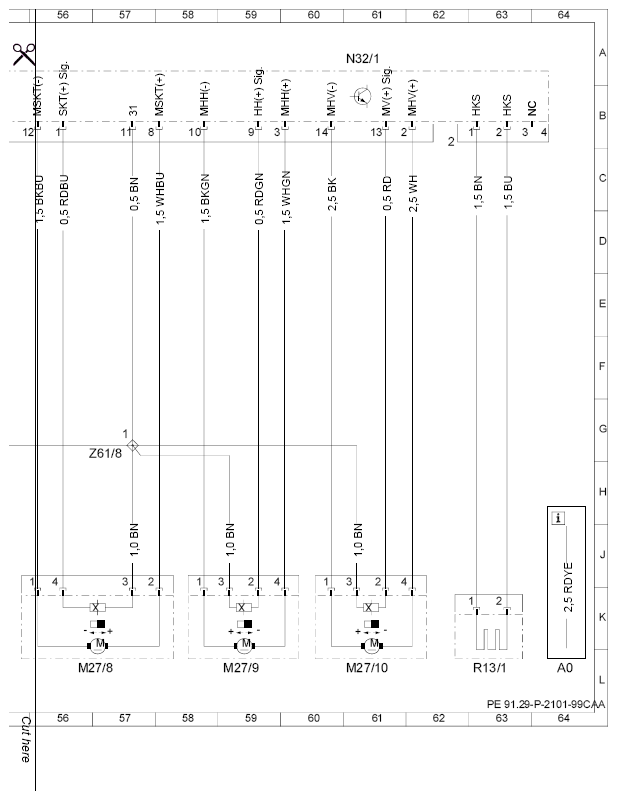

| A0 |
Explanation of color codes |
64L |

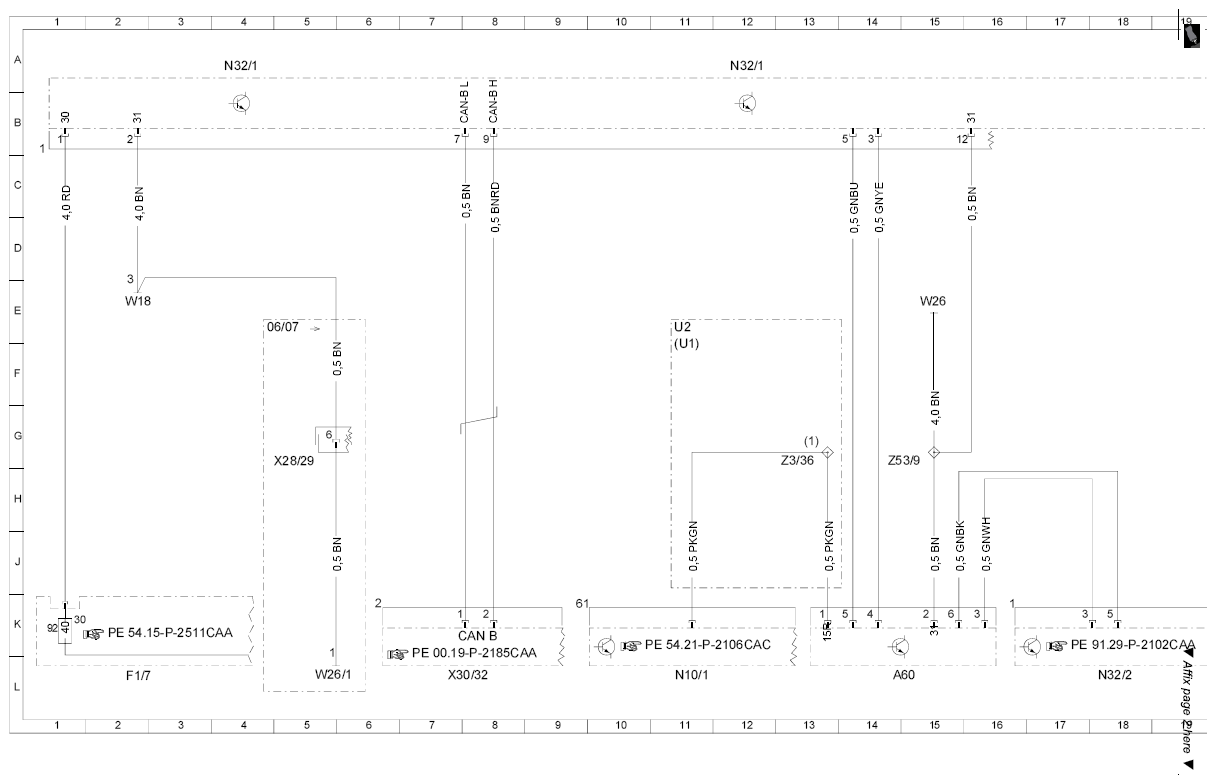

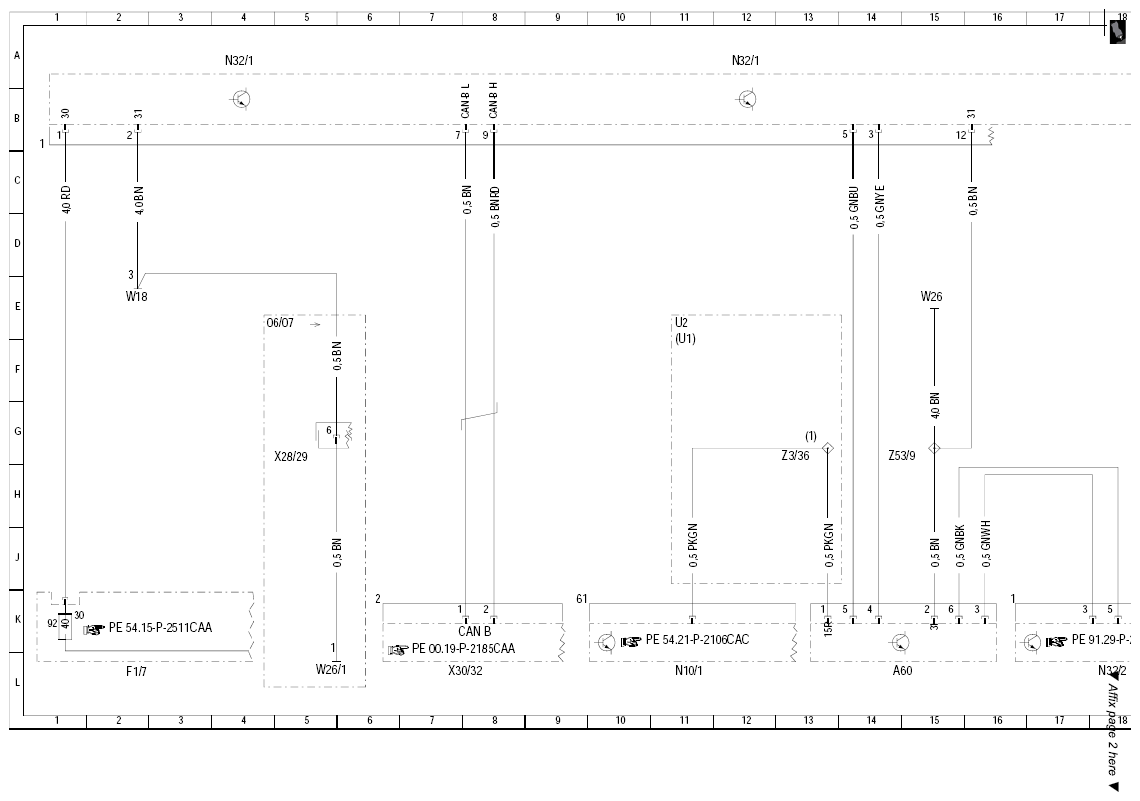

| A60 |
Vehicle-sensitive seatbelt lock sensor |
14L |
| F1/7 |
Left instrument panel fuse box |
2L |
| F1/7f92 |
Fuse 92 |
1K |

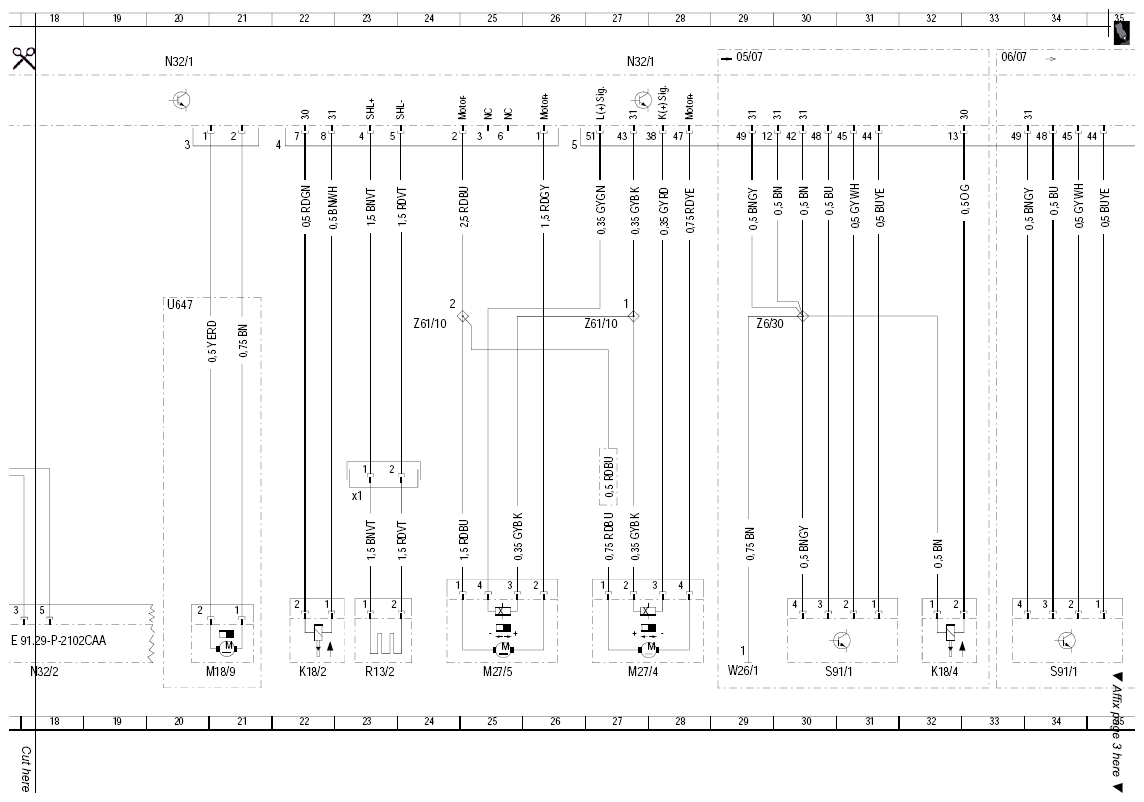

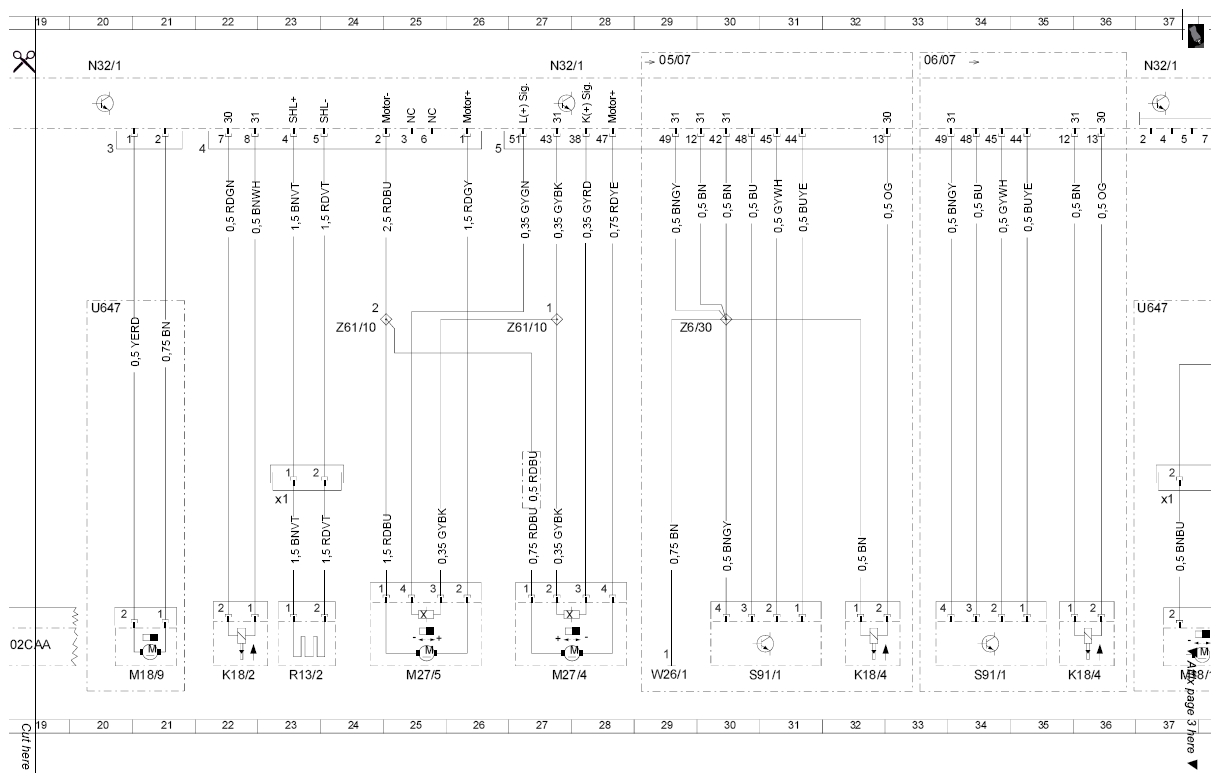

| K18/2 |
Left front seat belt lock relay module |
22L |
| K18/4 |
Left front seat belt comfort solenoid |
32L |

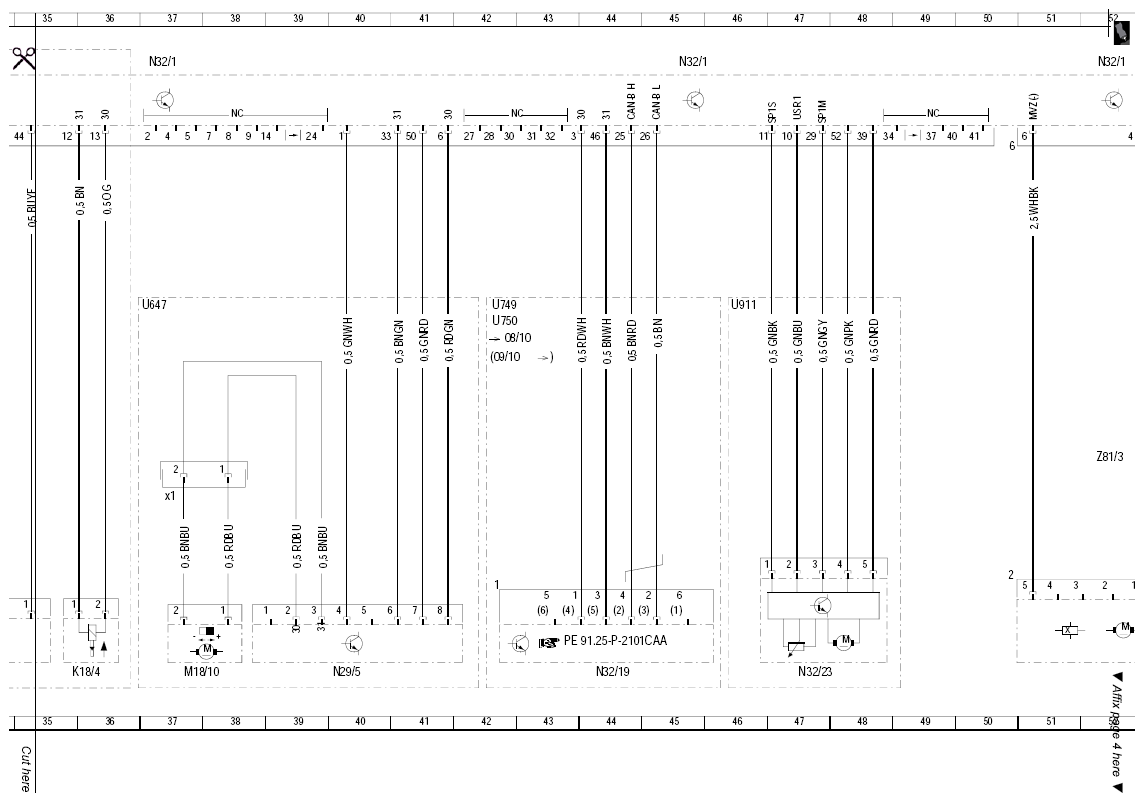

| K18/4 |
Left front seat belt comfort solenoid |
35L |

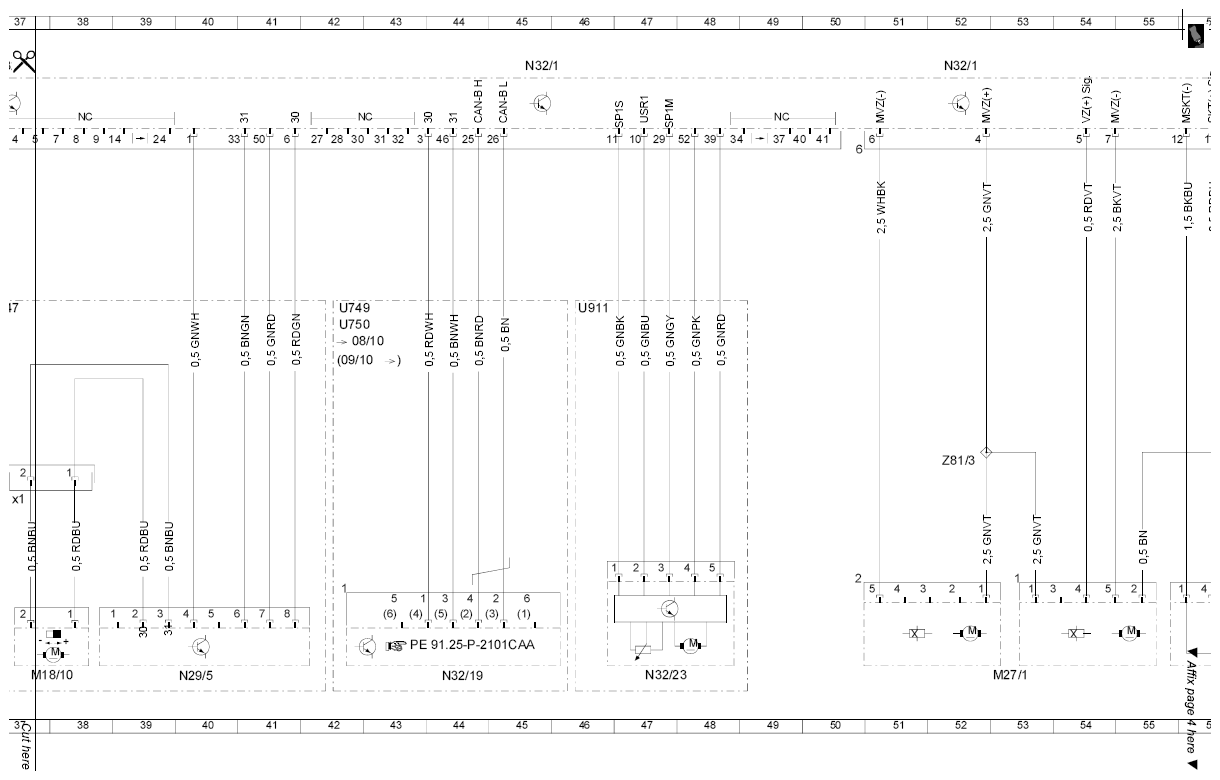

| M18/10 |
Left front seat backrest ventilation motor group |
37L |
| M18/10x1 |
Left front seat backrest ventilation motor group connector |
36H |
| M18/9 |
Left front seat cushion ventilation motor group |
20L |

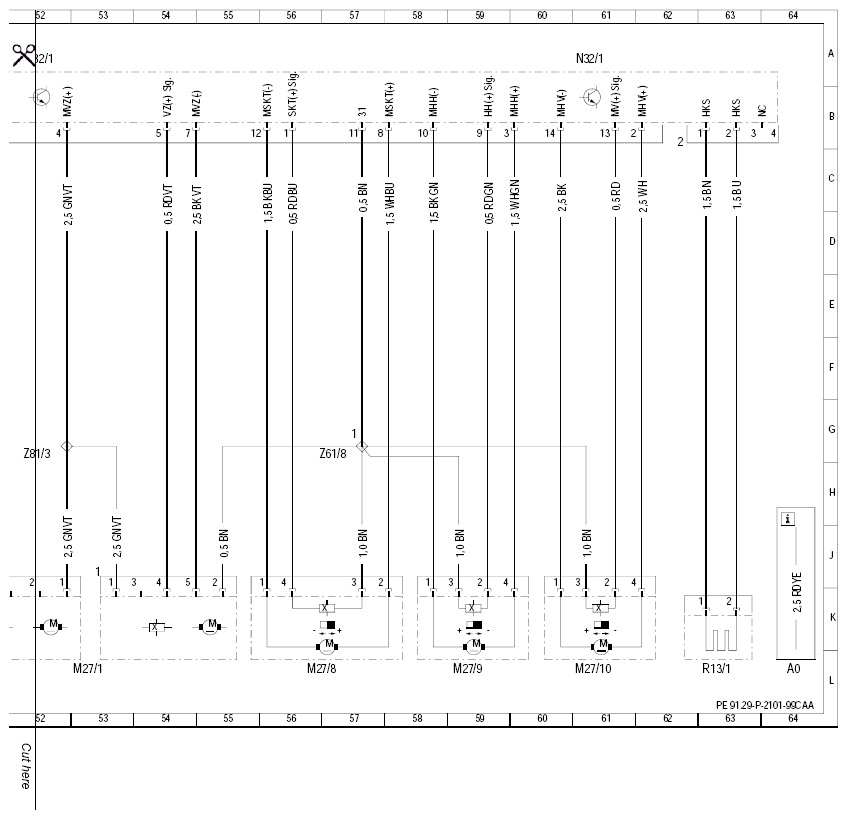

| M27/1 |
Left front seat fore/aft adjustment motor |
52L |
| M27/10 |
Left front seat height adjustment motor |
60L |
| M27/4 |
Left front head restraint motor |
27L |
| M27/5 |
Left front backrest angle adjustment motor |
25L |
| M27/8 |
Left front seat cushion fore/aft motor |
56L |
| M27/9 |
Left front seat cushion inclination motor |
59L |
| N10/1 |
Front SAM control module with fuse and relay module |
11L |
| N29/5 |
Left front seat ventilation blower regulator |
40L |
| N32/1 |
Left front seat control module |
4A |
| N32/1 |
Left front seat control module |
12A |
| N32/1 |
Left front seat control module |
20A |
| N32/1 |
Left front seat control module |
27A |
| N32/1 |
Left front seat control module |
37A |
| N32/1 |
Left front seat control module |
43A |
| N32/1 |
Left front seat control module |
52A |
| N32/1 |
Left front seat control module |
60A |
| N32/19 |
Left front dynamic seat control module |
43L |
| N32/2 |
Right front seat control module |
18L |
| N32/23 |
Driver lumbar support regulator control unit |
47L |
| R13/1 |
Left front seat heated cushion |
62L |
| R13/2 |
Left front backrest heated cushion |
23L |
| R13/2x1 |
Left front backrest heated cushion connector |
22H |
| S91/1 |
Left front seat backrest angle microswitch |
30L |
| S91/1 |
Left front seat backrest angle microswitch |
34L |
| U647 |
Valid for seat ventilation |
36E |
| U749 |
Valid for multicontour seat (MCS [MKS]) |
42E |
| U750 |
Valid for dynamic seat (DS [FDS]) |
42E |
| U911 |
Valid for lumbar support |
46E |
| W18 |
Ground (left front seat crossmember) |
2E |
| W26 |
Ground (restraint systems control module) |
15E |
| W26/1 |
Ground (seat, left front sidebag) |
5L |
| W26/1 |
Ground (seat, left front sidebag) |
29L |
| X28/29 |
Driver-side FFS [RBA]/seat airbag separation point |
4H |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
7L |
| Z3/36 |
ACSR [AKSE] circuit 15R connector sleeve |
13H |
| Z53/9 |
Interior sleeve connector, airbag circuit 31 |
14H |
| Z6/30 |
Circuit 31 connector sleeve |
29E |
| Z61/10 |
Driver seat backrest/head restraint motor connector sleeve |
24E |
| Z61/10 |
Driver seat backrest/head restraint motor connector sleeve |
26E |
| Z61/8 |
Wiring harness connector sleeve for seat, terminal 31 |
56H |
| Z81/3 |
Circuit 58d in FSS [RBA] connector sleeve |
52H |
