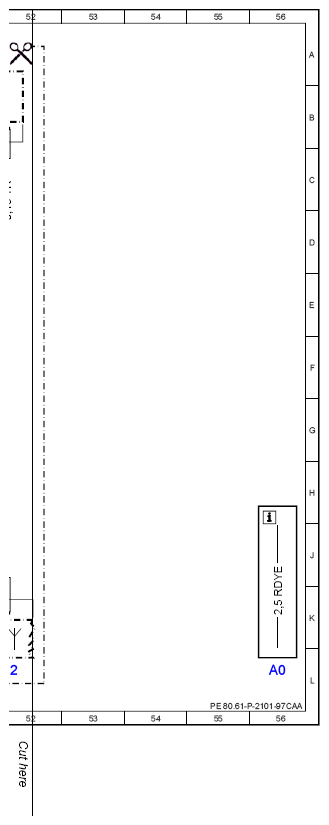

| A0 |
Color code key |
56L |
| A2/12 |
Rear window antenna amplifier module |
30L |
| A2/12 |
Rear window antenna amplifier module |
51L |
| A2/35 |
Trunk KEYLESS GO antenna |
27L |
| A2/35 |
Trunk KEYLESS GO antenna |
50L |
| A2/39 |
Left door KEYLESS-GO antenna |
18L |
| A2/39 |
Left door KEYLESS-GO antenna |
47L |
| A2/41 |
Right door KEYLESS-GO antenna |
19L |
| A2/41 |
Right door KEYLESS-GO antenna |
49L |
| A2/60 |
Center console KEYLESS-GO antenna |
12L |
| A2/60 |
Center console KEYLESS-GO antenna |
42L |
| A2/60x1 |
Center console KEYLESS-GO antenna connector |
12J |
| A2/60x1 |
Center console KEYLESS-GO antenna connector |
42H |
| A2/61 |
Interior KEYLESS GO antenna |
14L |
| A2/61x1 |
Interior KEYLESS-GO antenna connector |
13J |
| A85 |
Left door lock unit |
4L |
| A85 |
Left door lock unit |
34K |
| A85/1 |
Right door lock unit |
7L |
| A85/1 |
Right door lock unit |
37K |
| A85/1m2 |
Right opening assist motor |
8L |
| A85m2 |
Left opening assist motor |
5L |
| B67/1 |
Left KEYLESS-GO sensor unit |
15L |
| B67/1 |
Left KEYLESS-GO sensor unit |
43L |
| B67/1b1 |
Left comfort sensor |
16L |
| B67/1b1 |
Left comfort sensor |
44L |
| B67/2 |
Right KEYLESS-GO sensor unit |
17L |
| B67/2 |
Right KEYLESS-GO sensor unit |
45L |
| B67/2b1 |
Right comfort sensor |
18L |
| B67/2b1 |
Right comfort sensor |
46L |
| CAN B |
Interior CAN |
10K |
| CAN B |
Interior CAN |
41K |
| F1/6 |
Right instrument panel fuse box |
1L |
| F1/6 |
Right instrument panel fuse box |
32L |
| F1/6f71 |
Fuse 71 |
1K |
| F1/6f71 |
Fuse 71 |
32K |

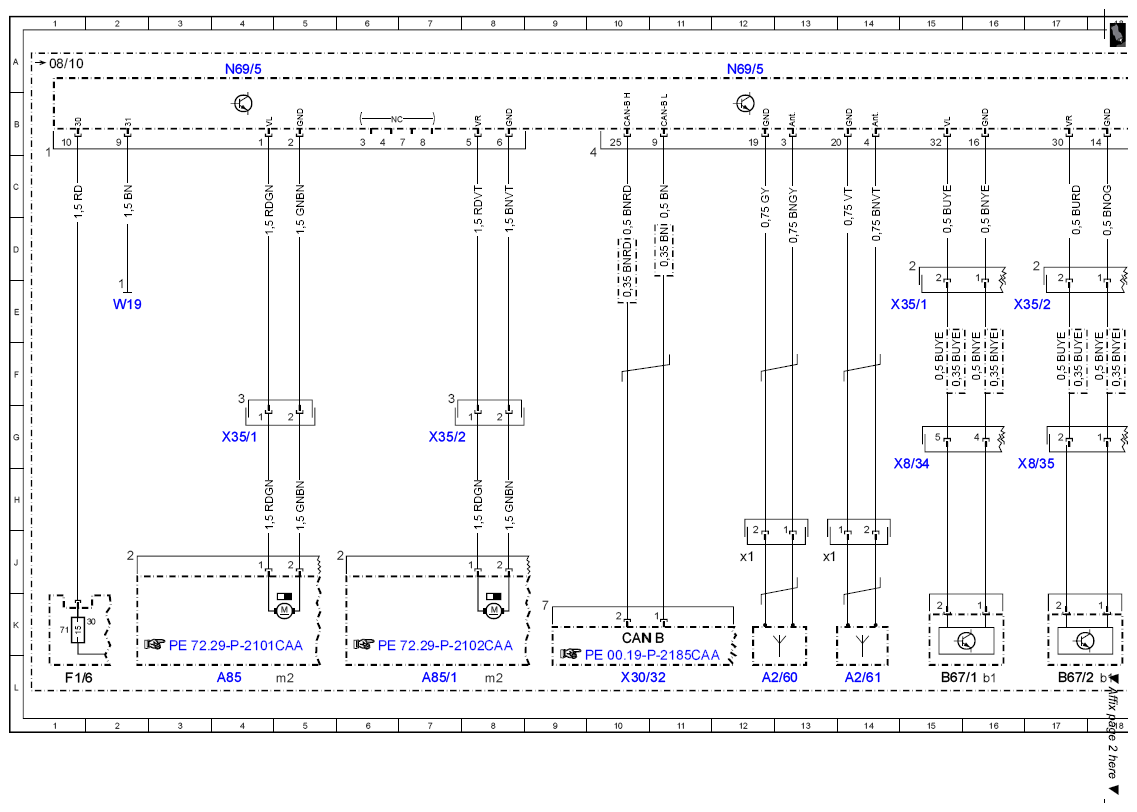

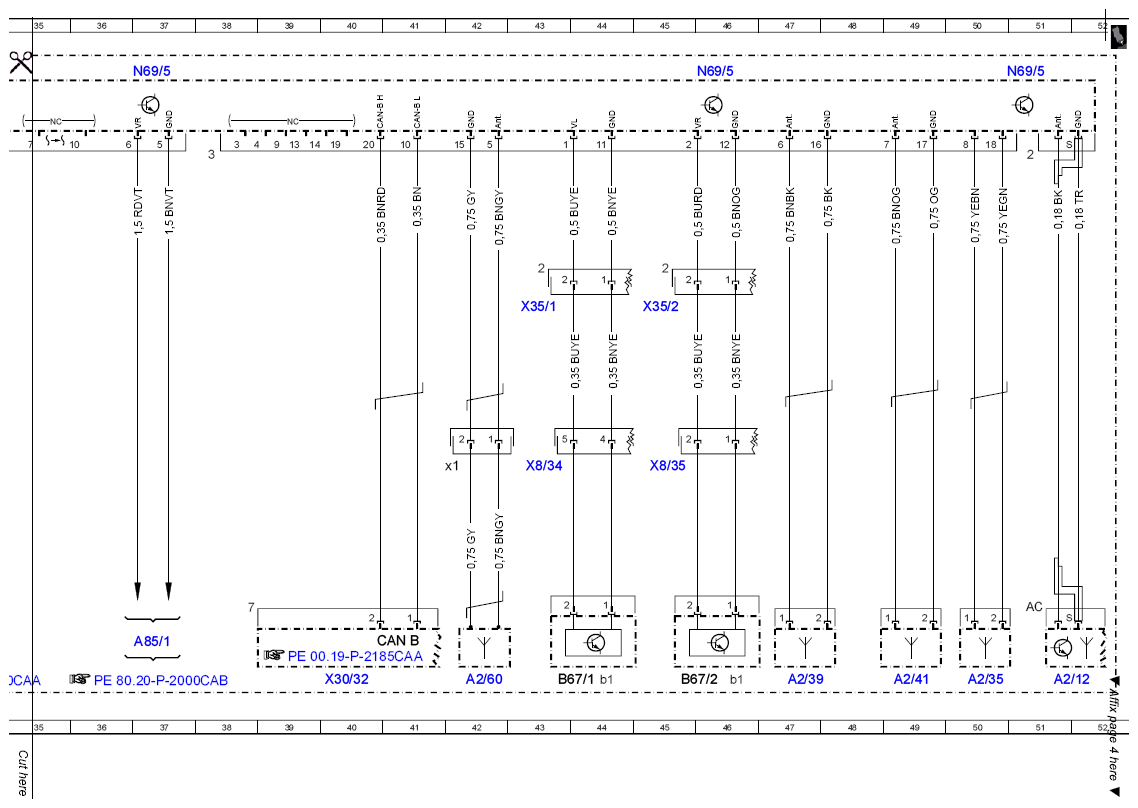

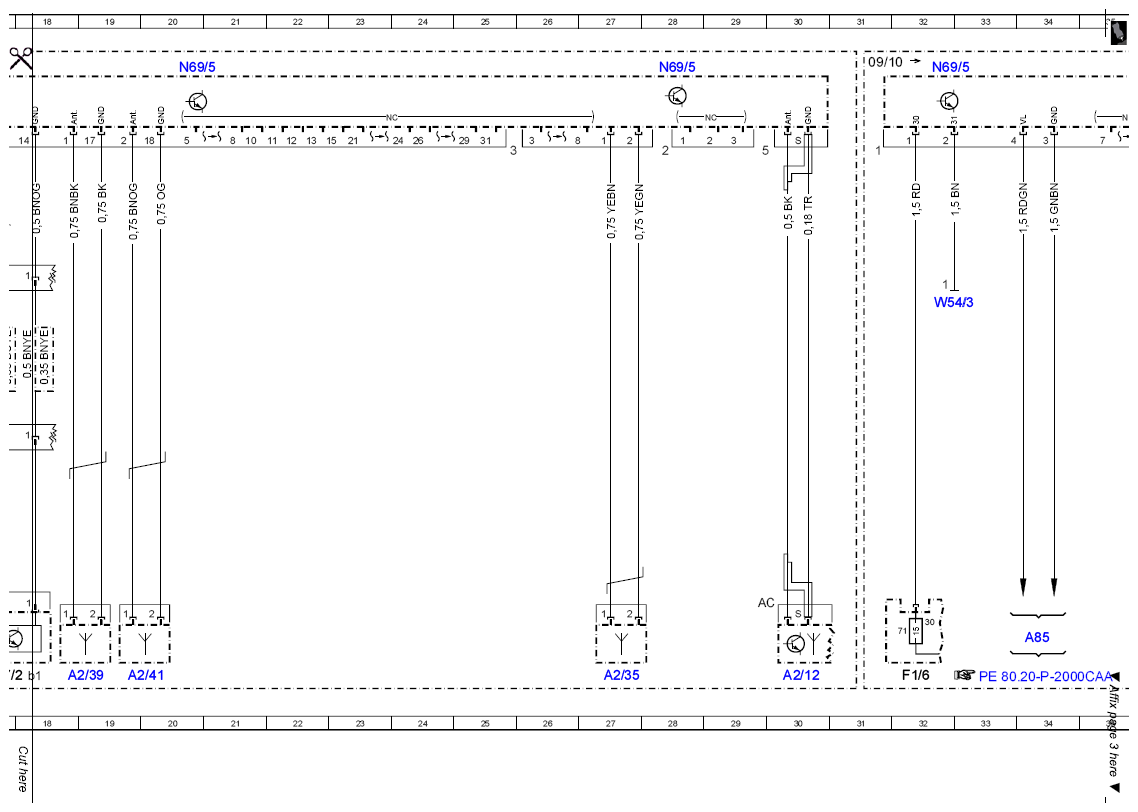

| N69/5 |
KEYLESS-GO control unit |
4A |
| N69/5 |
KEYLESS-GO control unit |
12A |
| N69/5 |
KEYLESS-GO control unit |
20A |
| N69/5 |
KEYLESS-GO control unit |
28A |
| N69/5 |
KEYLESS-GO control unit |
32A |
| N69/5 |
KEYLESS-GO control unit |
46A |
| N69/5 |
KEYLESS-GO control unit |
51A |
| N69/5 |
KEYLESS-GO control unit |
37A |
| W19 |
Ground (right front seat crossmember) |
2E |
| W54/3 |
Ground (left rear wheelhouse) |
32E |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
10L |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
40L |
| X35/1 |
Left front door and FFS [RBA] connector |
4G |
| X35/1 |
Left front door and FFS [RBA] connector |
15E |
| X35/1 |
Left front door and FFS [RBA] connector |
43E |
| X35/2 |
Right front door and FFS [RBA] connector |
17E |
| X35/2 |
Right front door and FFS [RBA] connector |
7G |
| X35/2 |
Right front door and FFS [RBA] connector |
45E |
| X8/34 |
Left door handle connector |
15H |
| X8/34 |
Left door handle connector |
43H |
| X8/35 |
Right door handle connector |
17H |
| X8/35 |
Right door handle connector |
45H |
