Adjusting fixtures for distance and comparison measurement according to the model concerned - AR40.30-P-0401-01SX

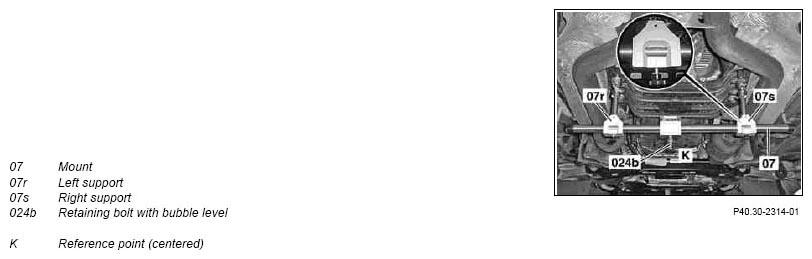

Fig 1: Identifying Mount (170 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

1. Slide suspension (07) as far as the end stop on the threaded bolts.
2. Align suspension (07) horizontal and adjust dimensions (see next picture) at the mounts (07r, 07s), see Table.

   The suspension (07) enables the vehicle center to be displayed with the check point (K).

shown on model 221

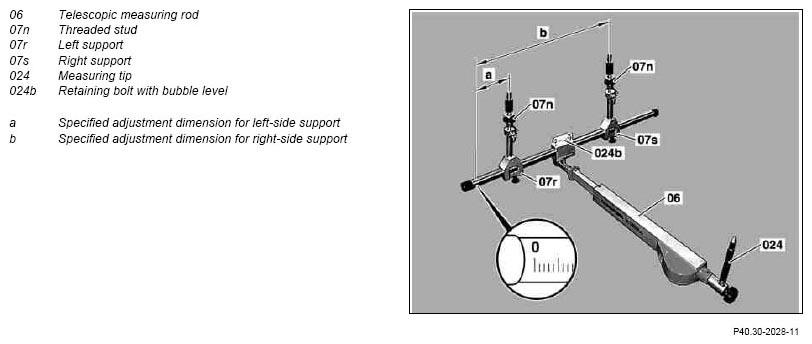

Fig 2: Identifying Sliding Suspension

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Adjustment Dimensions Of Left And Right Side Supports

Courtesy of MERCEDES-BENZ USA
