Retrofit wooden/leather steering wheel - AN46.10-P-1000SC

MODEL 216.3## (except 216.374 /377 /379) 1# except CODE (494) USA version except CODE (498) Japan version

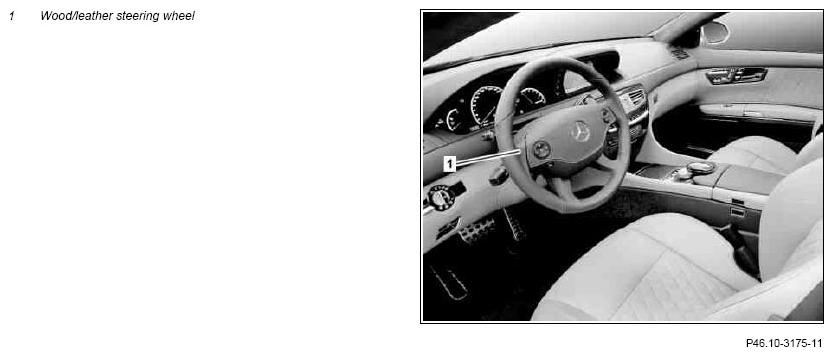

Fig 1: Identifying Wood/Leather Steering Wheel

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove steering wheel	Installation:  The steering wheel is replaced by a new wood/leather steering wheel (1).	AR46.10-P-0100SX
2	Install in the reverse order
3	Connect Star Diagnosis
4	Add special equipment to the vehicle data card and to the online vehicle data card	Code (289) Enter wood/leather steering wheel.
5	Disconnect Star Diagnosis
6	Document retrofitted equipment using vehicle documentation (VeDoc)	Attach "Wood/leather steering wheel" retrofitted as per AN46.10-P-1000SC  note under field organization text for design group 46.
