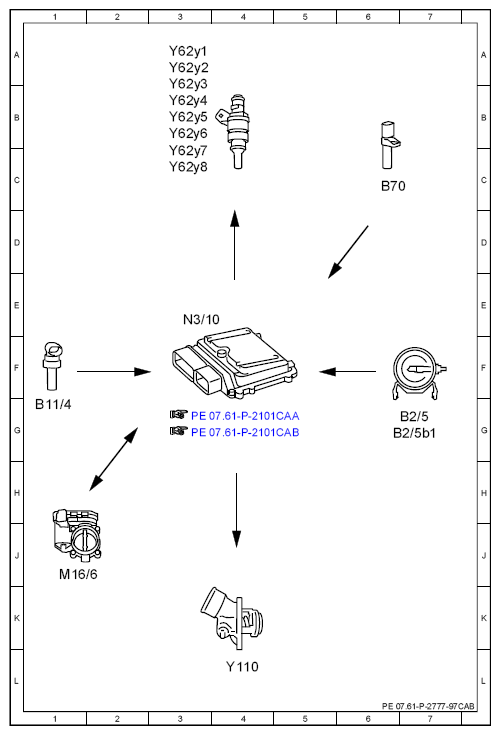

| Code: |
Designation: |
Position: |
| B11/4 |
Coolant temperature sensor |
1F |
| B2/5 |
Hot film mass air flow sensor |
7F |
| B2/5b1 |
Intake air temperature sensor |
7G |
| B70 |
Crankshaft Hall sensor |
6C |
| M16/6 |
Throttle valve actuator |
1J |
| N3/10 |
ME-SFI [ME] control unit |
4F |
| Y110 |
Three-disk thermostat valve |
4K |
| Y62y1 |
Cylinder 1 fuel injection valve |
3A |
| Y62y2 |
Cylinder 2 fuel injection valve |
3A |
| Y62y3 |
Cylinder 3 fuel injection valve |
3A |
| Y62y4 |
Cylinder 4 fuel injection valve |
3B |
| Y62y5 |
Cylinder 5 fuel injection valve |
3B |
| Y62y6 |
Cylinder 6 fuel injection valve |
3B |
| Y62y7 |
Cylinder 7 fuel injection valve |
3B |
| Y62y8 |
Cylinder 8 fuel injection valve |
3C |
