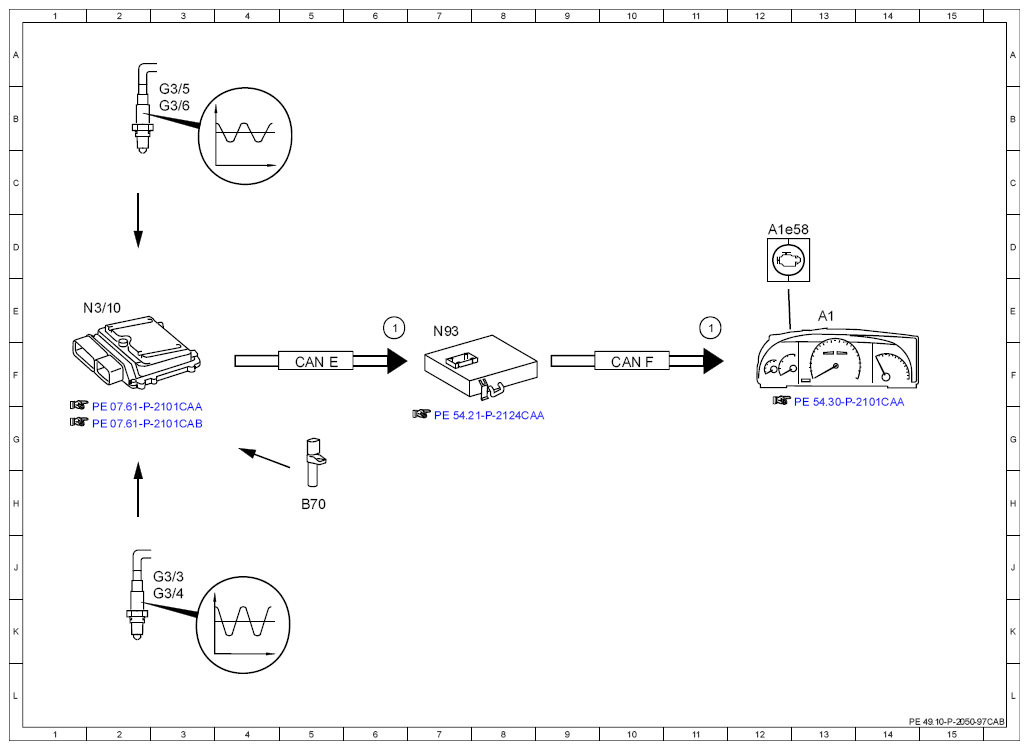

Electrical function schematic for monitoring catalytic converter effectiveness - PE49.10-P-2050-97CAB
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine diagnosis indicator lamp, actuation | E6 |
| 1 | Engine diagnosis indicator lamp, actuation | E11 |
| A1 | Instrument cluster | F13 |
| A1e58 | Engine diagnosis indicator lamp | D12 |
| B70 | Crankshaft Hall sensor | G5 |
| CAN E | Chassis CAN | F5 |
| CAN F | Central CAN | F10 |
| G3/3 | Left O2 sensor upstream of TWC [KAT] | K2 |
| G3/4 | Right O2 sensor upstream of TWC [KAT] | K2 |
| G3/5 | Left O2 sensor downstream of TWC [KAT] | B2 |
| G3/6 | Right O2 sensor downstream of TWC [KAT] | B2 |
| N3/10 | ME-SFI [ME] control unit | F2 |
| N93 | Central gateway control unit | F8 |
