Driver power window, outside mirror and trunk lid switch group, component description - GF54.25-P-4230SX
MODEL 216.3, 221.0 /1 up to Model Year 8
Illustrated on model 221
Location

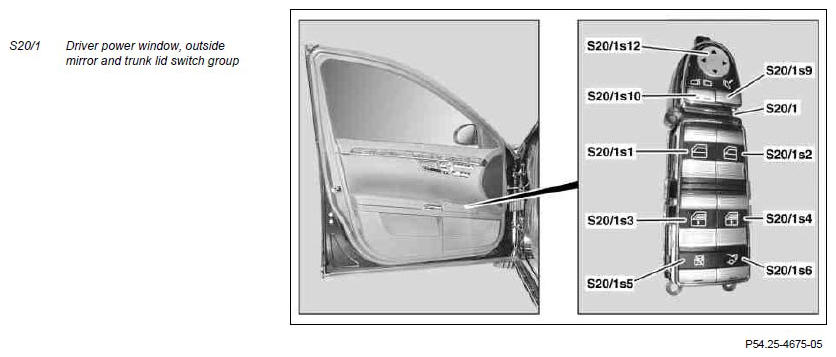

The switch group is located in the driver door armrest.
Design
The following switched are integrated in the switch group:
- Left front power window switch (S20/1s1)
- Right front power window switch (S20/1s2)
- Left rear power window and side window roller blind switch (S20/1s3) (with model 221) or
Left rear power window switch (S20/1s3) (with model 216)
- Right rear power window and side window roller blind switch (S20/1s4) (with model 221) or
Right rear power window switch (S20/1s4) (with model 216)
- Child protection switch for rear side windows (S20/1s5)
- Remote trunk lid open/close switch (S20/1s6)
- Switch for folding in/out outside mirrors (S20/1s9)
- Left or right outside mirror adjustment selection switch (S20/1s10)
- Outside mirror adjustment rocker switch (S20/1s12)
Task
The switch group forwards the adjustment request of the integrated switches over the front door LIN to the left front door control unit (N69/1) (with model 221) or the left door control unit (N69/1) (with model 216).
