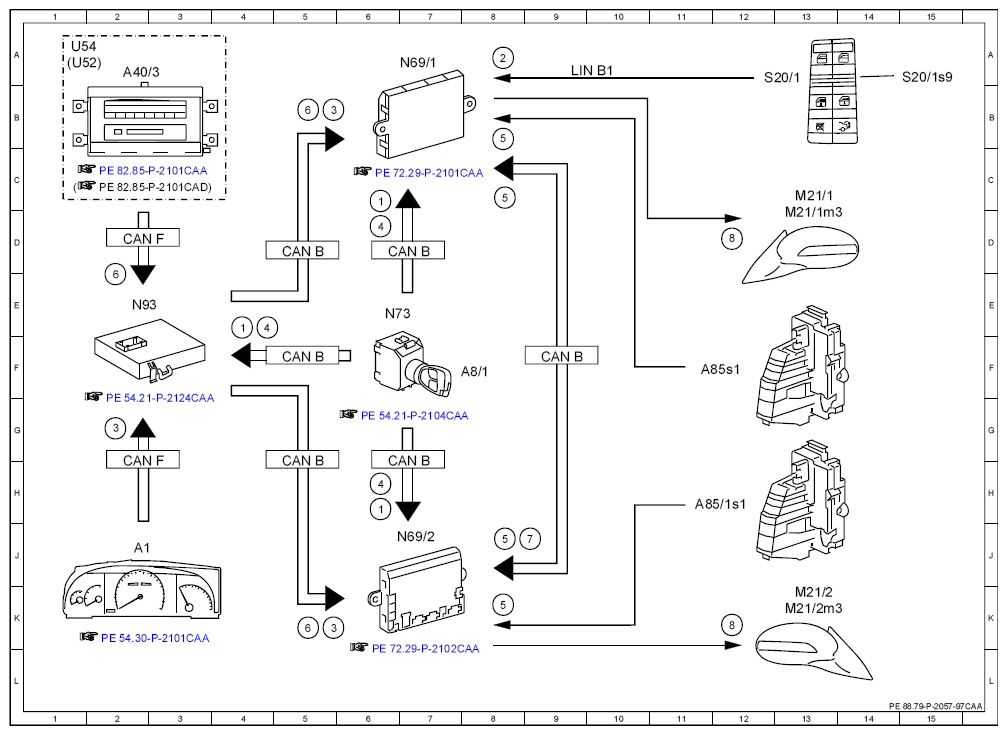

| 1 |
Circuit 15, status |
4E |
| 1 |
Circuit 15, status |
6C |
| 1 |
Circuit 15, status |
6H |
| 2 |
Outside mirror adjustment switch group, status |
8A |
| 3 |
Vehicle speed, signal |
5B |
| 3 |
Vehicle speed, signal |
5K |
| 3 |
Vehicle speed, signal |
2G |
| 4 |
Central locking (CL[ZV]), status |
6D |
| 4 |
Central locking (CL[ZV]), status |
4E |
| 4 |
Central locking (CL[ZV]), status |
6H |
| 5 |
Door rotary tumbler switch, status |
8B |
| 5 |
Door rotary tumbler switch, status |
8C |
| 5 |
Door rotary tumbler switch, status |
8J |
| 5 |
Door rotary tumbler switch, status |
8K |
| 6 |
Automatic power folding mirrors, status |
5B |
| 6 |
Automatic power folding mirrors, status |
2E |
| 6 |
Automatic power folding mirrors, status |
5K |
| 7 |
Mirror folding motor, request |
9J |
| 8 |
Mirror folding motor, actuation |
12D |
| 8 |
Mirror folding motor, actuation |
12K |
| A1 |
Instrument cluster |
2K |
| A40/3 |
COMAND control unit |
2B |
| A8/1 |
Transmitter key |
F6 |
| A85/1s1 |
Right rotary tumbler switch |
13H |
| A85s1 |
Left rotary tumbler switch |
13F |
| CAN B |
Interior CAN |
5D |
| CAN B |
Interior CAN |
7D |
| CAN B |
Interior CAN |
5F |
| CAN B |
Interior CAN |
5G |
| CAN B |
Interior CAN |
7G |
| CAN B |
Interior CAN |
9F |
| CAN F |
Central CAN |
2H |
| CAN F |
Central CAN |
2D |
| LIN B1 |
Front door LIN |
10A |
| M21/1 |
Left electrically adjustable and heated outside mirror |
13D |
| M21/1m3 |
Mirror fold-in motor |
13D |
| M21/2 |
Right electrically adjustable and heated outside mirror |
13K |
| M21/2m3 |
Mirror fold-in motor |
13K |
| N69/1 |
Left door control unit |
7B |
| N69/2 |
Right door control unit |
7K |
| N73 |
EIS [EZS] control unit |
7F |
| N93 |
Central gateway control unit |
3F |
| S20/1 |
Driver power window, outside mirror and trunk lid switch group |
13B |
| S20/1s9 |
Outside mirror fold-in/fold-out switch |
13A |
| U52 |
Valid for Japan |
2A |
| U54 |
Valid for all except Japan |
2A |
