Electrically adjustable outside mirror, block diagram - GF88.79-P-0005-02SX

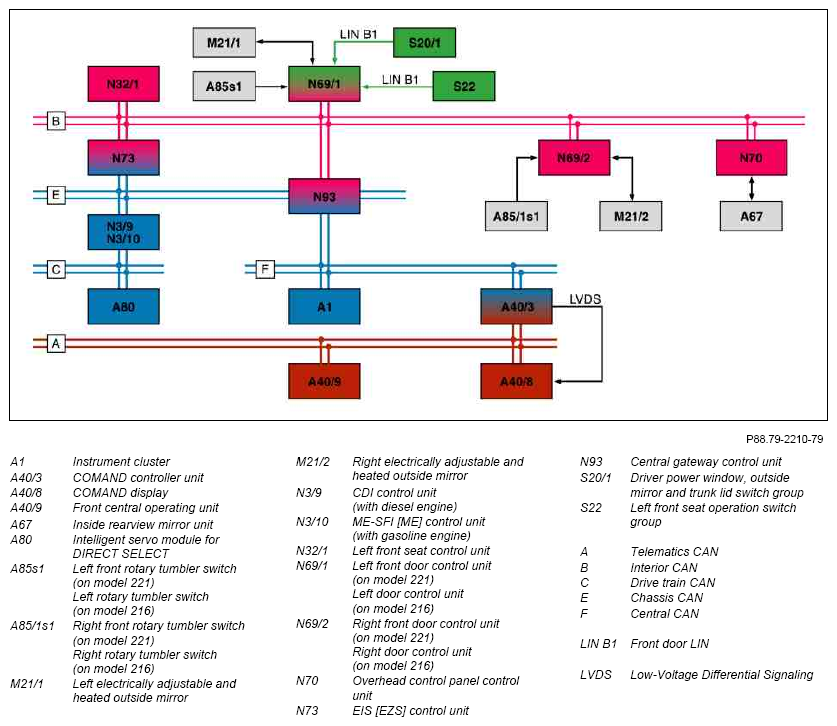

Fig 1: Electrically Adjustable Outside Mirror Block Diagram

G07638943

Courtesy of MERCEDES-BENZ USA
