Electric outside mirrors, block diagram - GF88.79-P-0003-02LE

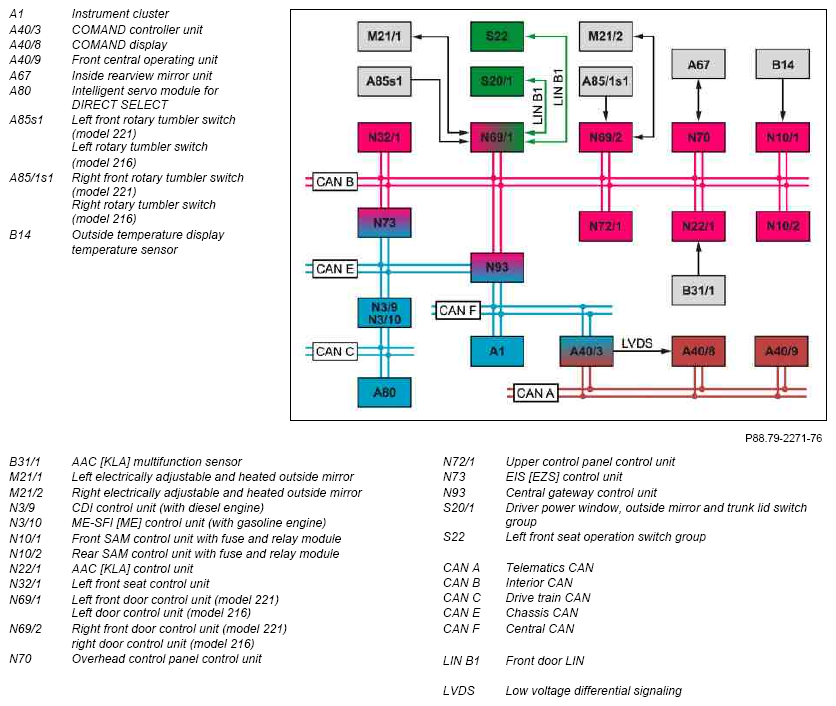

Fig 1: Electric Outside Mirrors Block Diagram

G07638941

Courtesy of MERCEDES-BENZ USA
