Remote trunk closing, location of components - GF80.20-P-0002-01LA

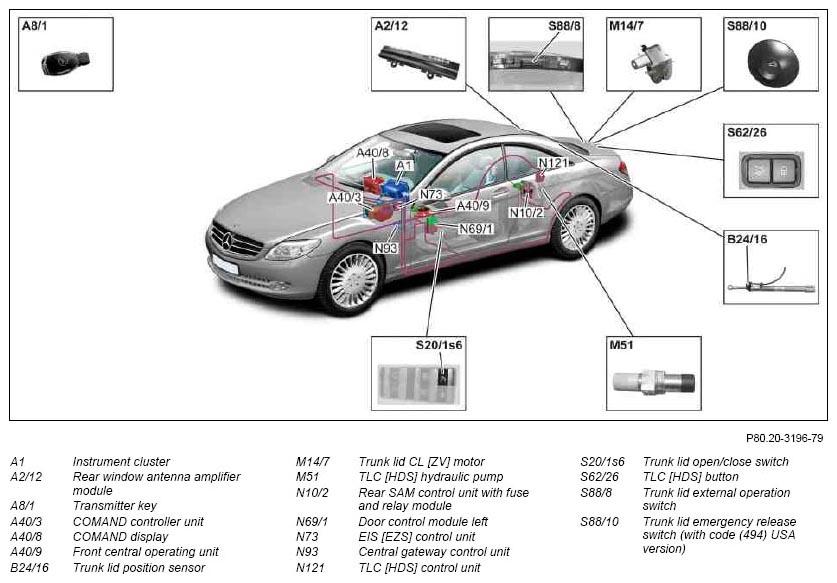

Fig 1: Remote Trunk Closing Component Location

G07641810

Courtesy of MERCEDES-BENZ USA
