Wiper system (WSA), networking of components - GF82.30-P-0003-02SX

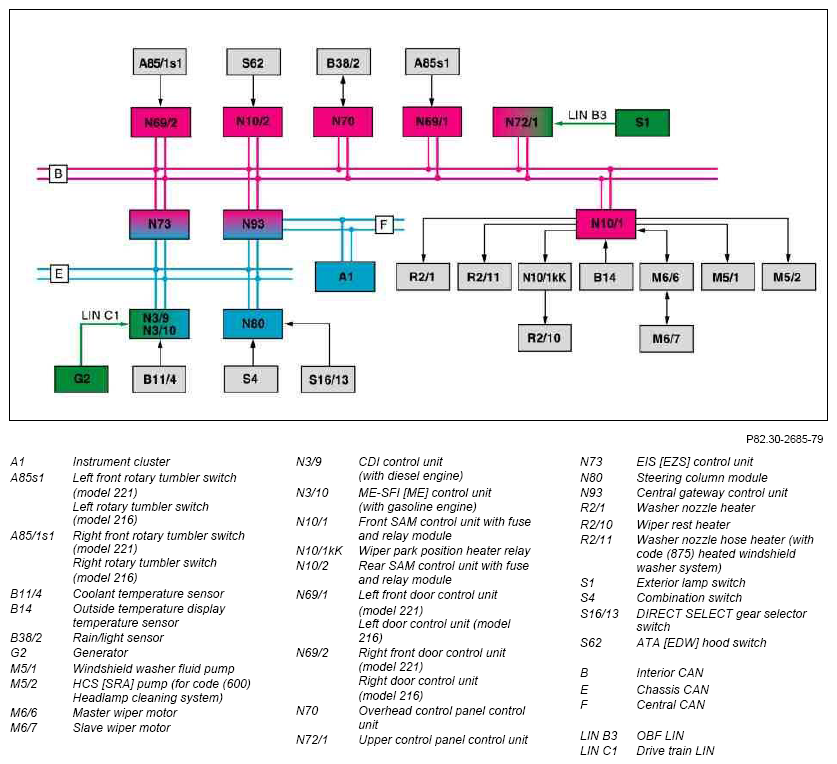

Fig 1: Identifying Networking Of Wiper System (WSA) Components

G07642004

Courtesy of MERCEDES-BENZ USA
