Keyless Go antenna, component description - GF82.62-P-4099SX

MODEL 221.0 /1, 216.3 with CODE (889) Keyless Go up to Model Year 8

Shown on model 221.0

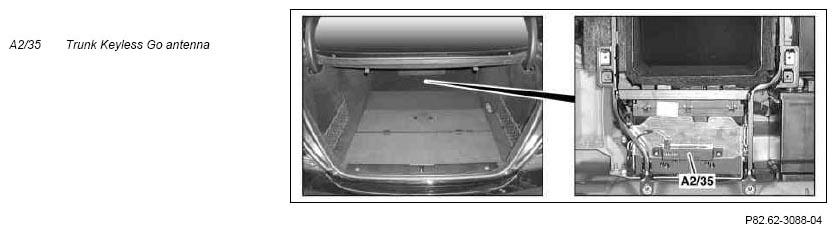

Fig 1: Identifying Trunk Keyless Go Antenna

Courtesy of MERCEDES-BENZ USA

Location

The trunk Keyless Go antenna is located on the bracket for the rear SAM control unit with fuse and relay module (N10/2) in the trunk.

Model 216.3

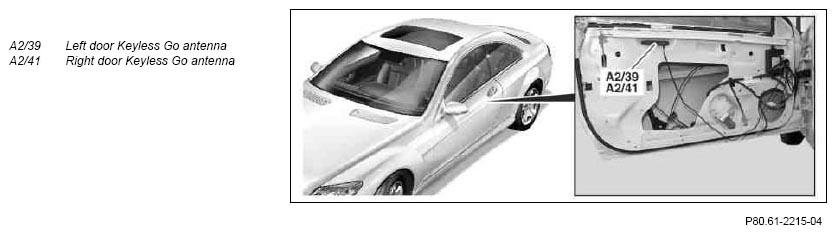

Fig 2: Identifying Left And Right Door Keyless Go Antenna

Courtesy of MERCEDES-BENZ USA

Location

The left door Keyless Go antenna and the right door Keyless Go antenna are located behind the door trim of the respective door.

Model 221

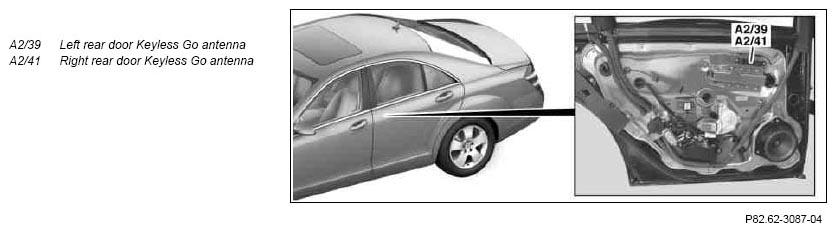

Fig 3: Identifying Left And Right Rear Door Keyless Go Antenna

Courtesy of MERCEDES-BENZ USA

Location

The left rear door Keyless Go antenna and the right rear door Keyless Go antenna are located behind the door trim of the respective rear door.

Illustrated on model 221

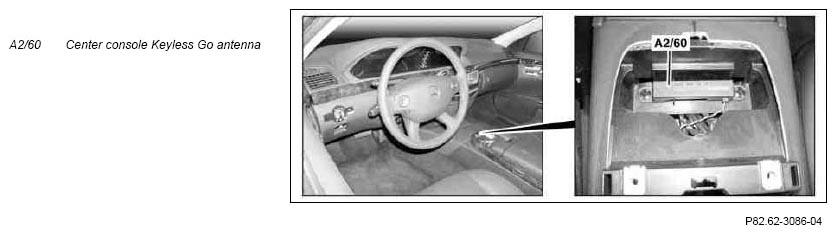

Fig 4: Identifying Center Console Keyless Go Antenna

Courtesy of MERCEDES-BENZ USA

Location

The center console Keyless Go antenna is located under the center console in the area of the turn/push control (A40/9s11).

Model 216.3

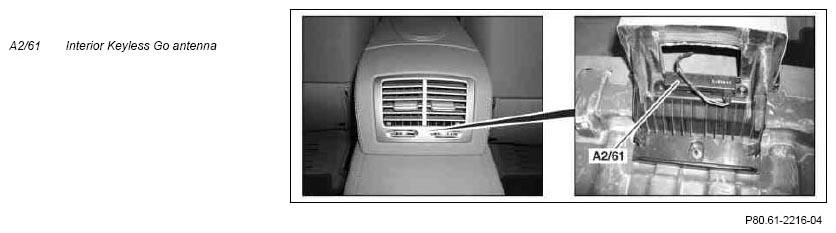

Fig 5: Identifying Interior Keyless Go Antenna

Courtesy of MERCEDES-BENZ USA

Location

The interior Keyless Go antenna is located under the rear center console in the area of the air outlet vent.

Model 221

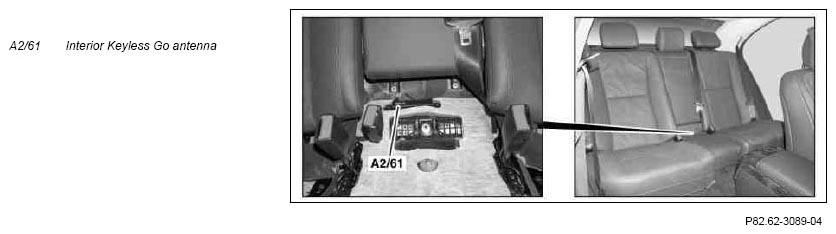

Fig 6: Identifying Interior Keyless Go Antenna

Courtesy of MERCEDES-BENZ USA

Location

The interior Keyless Go antenna is located under the rear seats.

Tasks

At the request of the Keyless Go control unit (N69/5), the Keyless Go antennas transmit a wake-up and locating signal for the transmitter key (A8/1).
