Interior illumination (IBL) component network - GF82.20-P-0002-02SXE

Switch and controls illumination

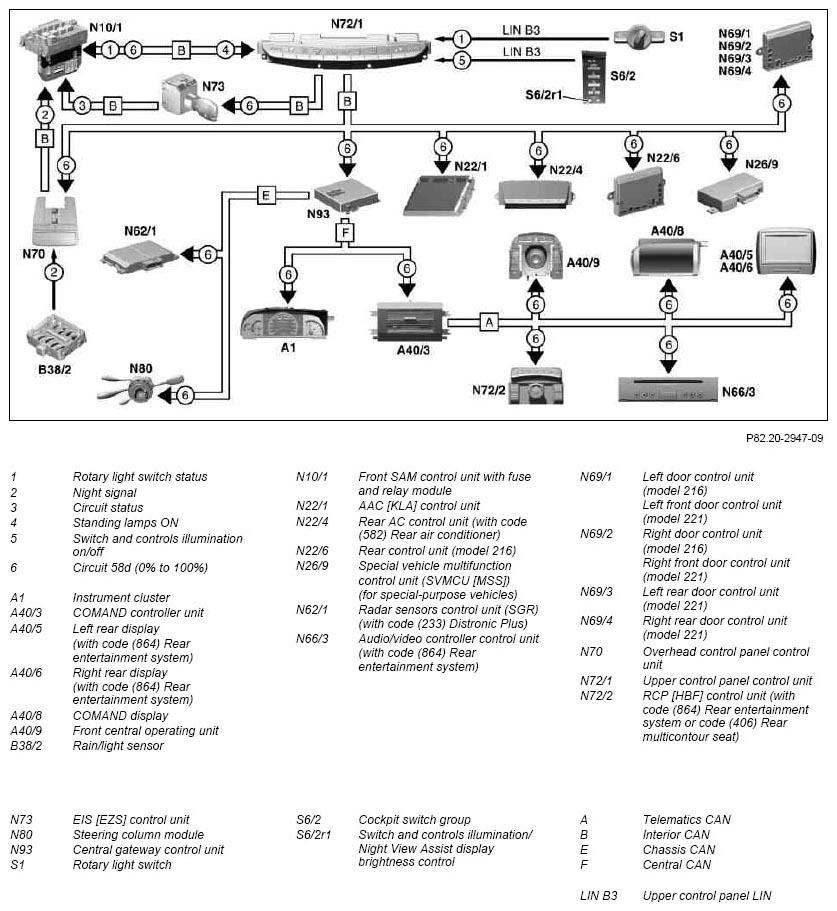

Fig 1: Identifying CAN Communication Diagram Of Interior Illumination (Switch And Controls Illumination)

Courtesy of MERCEDES-BENZ USA
